View larger
Images are for illustrative purposes only. Please refer to data sheet for details

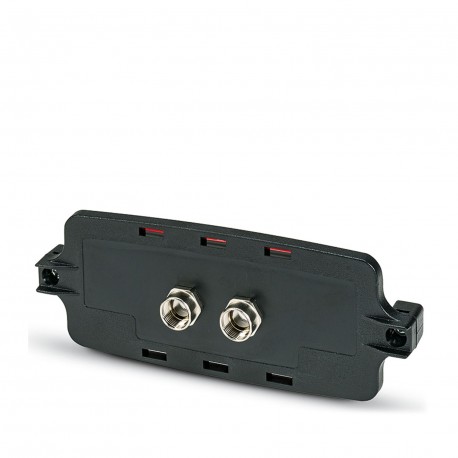

ECS-P-122X169-S-UV1-2M12 2230010 PHOENIX CONTACT Front plate
ECS-P-122X169-S-UV1-2M12
2230010
PHOENIX CONTACT
5 Pcs.
Front plate
ECS family faceplate, SPEEDCON M12 female connector (2 units), screw lock. IP66/67/69 protection rating in combination with the corresponding box. Colour: black (9005), width: 163 mm, height: 30 mm, depth: 62 mm
Automation > Extruded profile modular housing
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2230010 |
|---|---|
| Packing unit | 5 pc |
| Minimum order quantity | 5 pc |
| GTIN | 4055626381459 |
| Weight per Piece (excluding packing) | 136.570 g |
| Custom tariff number | 85389099 |
| Country of origin | US (United States) |
Item properties
| Type | ECS-P-122X169-S-UV1-2M12 |
|---|---|
| Order No. | 2230010 |
| Type | Screw locking |
| Mounting type | Screw locking |
Material specifications
| Color (RAL) | black (9005) |
|---|---|
| Flammability rating according to UL 94 | V0 |
| Housing material | PC (polycarbonate) |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027180401eCl@ss 4.127180401eCl@ss 5.027180505eCl@ss 5.127180505eCl@ss 6.027180800eCl@ss 7.027182702eCl@ss 8.027182702eCl@ss 9.027182702
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Closed |
| Housing connectable (EF003088) | No |
| Suitable for rail mounting (EF003972) | No |
| Wall mounting possible (EF003973) | No |
| With integrated PCB-mounting connection system (EF003087) | No |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Black |
| RAL-number (EF000116) | 9005 |
| Width (EF000008) | 163 mm |
| Height (EF000040) | 30 mm |
| Depth (EF000049) | 62 mm |
