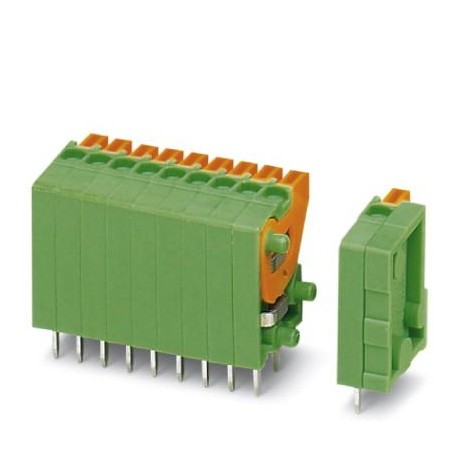

PHOENIX CONTACT FFKDSA1/V-2,54-13 BD:1-13 FFKDSA1/V-2,54-13 BD:1-13 1715091 PHOENIX CONTACT PCB terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FFKDSA1/V-2,54-13 BD:1-13 1715091 PHOENIX CONTACT PCB terminal block

FFKDSA1/V-2,54-13 BD:1-13

1715091

PHOENIX CONTACT

10 Pcs.

PCB terminal block Terminal block for printed circuit board, nominal current: 6 A, dimensioning voltage (III/2): 160 V, nominal section: 0.5 mm², Number of potentials: 13, Number of rows: 1, Number of poles per row: 13, family of articles: FFKDS(A) 0.5/.. -V, pitch: 2.54 mm, connection type: Push-in spring connection, mounting: Wave soldering, conductor connection direction/printed circuit board: 90 °, color: green, Pin arrangement: Linear double pin arrangement, Pin length [P]: 3.4 mm, packaging type: boxed

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1715091
Packing unit1
GTIN4055626406138
Custom tariff number85369010

Dimensions

Length [ l ]12.6 mm
Pitch2.54 mm
Dimension a30.48 mm
Width [ w ]35.52 mm
Height13.6 mm
Height [ h ]17 mm
Solder pin [P]3.4 mm
Pin spacing5.08 mm
Hole diameter1.1 mm

General

Range of articlesFFKDS(A) 0,5/..-V
Rated voltage (III/2)160 V
Nominal current IN6 A
Nominal cross section0.5 mm²
Solder pin surface
Number of positions13

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
