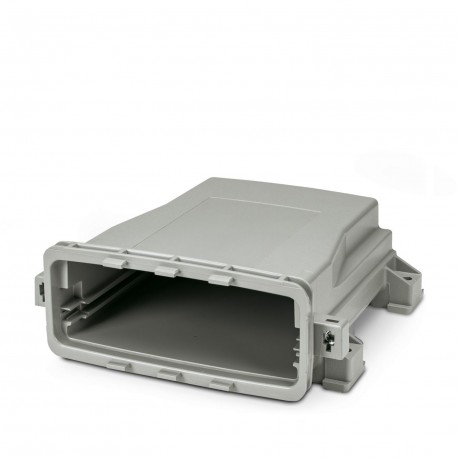

PHOENIX CONTACT ECS-B-122X169-S-UV-V GY ECS-B-122X169-S-UV-V GY 1050209 PHOENIX CONTACT Screw locking vented enclosure of the ECS Family. IP66/67/69.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

ECS-B-122X169-S-UV-V GY 1050209 PHOENIX CONTACT Screw locking vented enclosure of the ECS Family. IP66/67/69..

ECS-B-122X169-S-UV-V GY

1050209

PHOENIX CONTACT

5 Pcs.

Screw locking vented enclosure of the ECS Family. IP66/67/69 rated when mated with associated faceplate. Color: Grey (7042), Width: 164 mm, Height: 176 mm, Depth: 64 mm Ventilated housing of the ECS family, screw lock. IP66/67/69 protection rating in case of combination with the corresponding faceplate. Colour: grey (7042), width: 164 mm, height: 176 mm, depth: 64 mm

Automation > Extruded profile modular housing
Housing (HS)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1050209
Packing unit1 pc
GTIN4055626662787
Weight per Piece (excluding packing)1.000 g
Custom tariff number85389099
Country of originUS (United States)

Drawings

Dimensional drawing

Dimensional drawing

Back to top

Item properties

TypeECS-B-122X169-S-UV-V GY
Order No.1050209
TypeScrew locking
Mounting typeWall or panel mount. Pole mount with accessory.
Ventilationintegrated pressure compensation membrane
Back to top

Measurements

Dimensional drawing
Width [ w ]164 mm
Height [ h ]176 mm
Depth [ d ]64 mm
Back to top

Material specifications

Color (RAL)gray (7042)
Flammability rating according to UL 94V0
Housing materialPC (polycarbonate)
Back to top

Ambient conditions

Ambient temperature (operation)-40 °C ... 100 °C
Back to top

PCB data

PCB thickness1.59 mm ... 2.36 mm
Back to top

Packaging information

Pieces per package5
Denomination packing unitsPcs.
Back to top

Standards and regulations

Flammability rating according to UL 94V0
Back to top

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Back to top

Classifications

eCl@ss

eCl@ss 4.027180401
eCl@ss 4.127180401
eCl@ss 5.027180505
eCl@ss 5.127180505
eCl@ss 6.027180800
eCl@ss 7.027182702
eCl@ss 8.027182702
eCl@ss 9.027182702
Back to top

ETIM

ETIM 3.0EC001031
ETIM 4.0EC001031
ETIM 5.0EC000058
ETIM 6.0EC001031
ETIM 7.0EC001031
Back to top

UNSPSC

UNSPSC 6.0131261501
UNSPSC 7.090131261501
UNSPSC 1131261501
UNSPSC 12.0131261501
UNSPSC 13.231261501
UNSPSC 18.031261501
UNSPSC 19.031261501
UNSPSC 20.031261501
UNSPSC 21.031261501
Back to top

ETIM for 1050209 Low-voltage industrial controls and switchgear (EC002779)
Feature Name Feature Value
Type of enclosure (EF003086) Closed
Housing connectable (EF003088) No
Material (EF002169) Other
Surface finishing (EF006569) Other
Colour (EF000007) Grey
RAL-number (EF000116) 7042
Width (EF000008) 164 mm
Height (EF000040) 176 mm
Depth (EF000049) 64 mm
