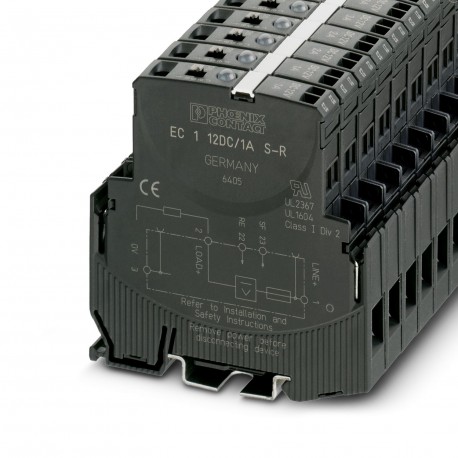

EC 1 12DC/4A S-R 3000763 PHOENIX CONTACT Electronic device circuit breaker
EC 1 12DC/4A S-R
3000763
PHOENIX CONTACT
1 Pcs.
Electronic device circuit breaker
Electronic protection switch, reset input and status output, rated current: 4 A
Electronic circuit breaker, reset input and status output, nominal current: 4 A
Automation > Device circuit breaker
Over Current Protection
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Device circuit breakers |
| Product family | EC-E |
| Type | DIN rail module, one-piece |
| Number of positions | 1 |
Electrical properties
| Maximum load current | 4 A (100% duty cycle, 40°C) |
| 4 A (100% duty cycle, 50°C) | |
| Service life electrical | 10000 |
| General | |
| Fuse | electronic |
Connection data
| Maximum load current | 4 A (100% duty cycle, 40°C) |
| 4 A (100% duty cycle, 50°C) | |
| Line+ / LOAD+ /0V | |
| Screw thread | M4 |
| Tightening torque | 1.5 ... 1.8 Nm |
| Stripping length | 10 mm |
| Conductor cross section rigid | 0.5 mm² ... 10 mm² |
| Conductor cross section flexible | 0.5 mm² ... 10 mm² |
| 2 conductors with same cross section, solid | 0.5 mm² ... 4 mm² |
| 2 conductors with same cross section, flexible | 0.5 mm² ... 4 mm² |
| Nominal current | 4 A |
| Nominal voltage | 12 V DC |
| Conductor cross section flexible | 0.25 mm² ... 2.5 mm² |
Dimensions
| Width | 12.5 mm |
| Height | 80 mm |
Material specifications
| Color | black (RAL 9005) |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -20 °C ... 60 °C (ordinary locations) |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Mounting
| Mounting type | DIN rail: 35 mm |
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 1 |
| Width (EF000008) | 12.5 mm |
| Height (EF000040) | 80 mm |
| Mounting method (EF000003) | Other |
| Active current limitation x IN (EF011922) | 0 |
| Fuse type (EF011923) | Electronic |
| With remote signalling contact (EF000422) | No |
| Ambient temperature during operating (EF007515) | -20 °C |
