View larger
Images are for illustrative purposes only. Please refer to data sheet for details

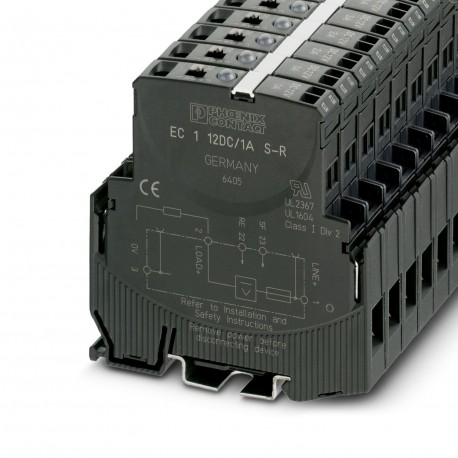

EC 1 12DC/3A S-R 3000762 PHOENIX CONTACT Electronic device circuit breaker
EC 1 12DC/3A S-R
3000762
PHOENIX CONTACT
6 Pcs.
Electronic device circuit breaker
Electronic protection switch, reset input and status output, rated current: 3 A
Electronic circuit breaker, reset input and status output, rated current: 3 A
Automation > Device circuit breaker
Over Current Protection
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 3000762 |
|---|---|
| Packing unit | 10 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356708579 |
| Weight per Piece (excluding packing) | 69.150 g |
| Custom tariff number | 85362010 |
| Country of origin | DE (Germany) |
Connection data
| Conductor cross section solid min. | 0.5 mm² |
|---|---|
| Conductor cross section solid max. | 10 mm² |
| Conductor cross section flexible min. | 0.5 mm² |
| Conductor cross section flexible max. | 10 mm² |
| 2 conductors with same cross section, solid min. | 0.5 mm² |
| 2 conductors with same cross section, solid max. | 4 mm² |
| 2 conductors with same cross section, stranded min. | 0.5 mm² |
| 2 conductors with same cross section, stranded max. | 4 mm² |
| Connection method | Screw connection |
| Stripping length | 10 mm |
| Screw thread | M4 |
| Tightening torque, min | 1.5 Nm |
| Tightening torque max | 1.8 Nm |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027141116eCl@ss 4.127141116eCl@ss 5.027141116eCl@ss 5.127141100eCl@ss 6.027141100eCl@ss 7.027141116eCl@ss 8.027141116eCl@ss 9.027141116
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 1 |
| Width (EF000008) | 12.5 mm |
| Height (EF000040) | 80 mm |
| Mounting method (EF000003) | Other |
| Active current limitation x IN (EF011922) | 0 |
| Fuse type (EF011923) | Electronic |
| With remote signalling contact (EF000422) | No |
| Ambient temperature during operating (EF007515) | -20 °C |
