View larger
Images are for illustrative purposes only. Please refer to data sheet for details

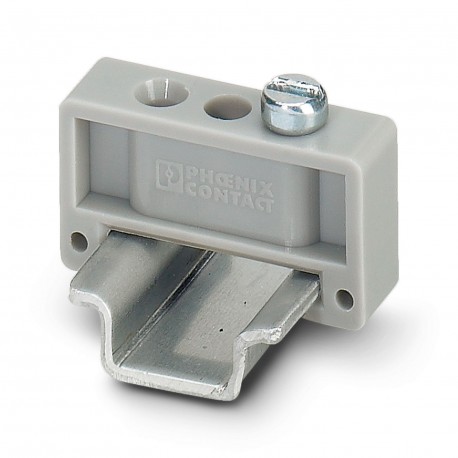

E/MK 1421633 PHOENIX CONTACT End clamp
E/MK
1421633
PHOENIX CONTACT
100 Pcs.
End clamp
End support, width: 6.2 mm, colour: Grey
Automation > End bracket for terminal block
CABINET add-on
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1421633 |
|---|---|
| Packing unit | 100 pc |
| Minimum order quantity | 100 pc |
| Catalog page | Page 442 (CL-2005) |
| GTIN | 4017918021559 |
| Weight per Piece (excluding packing) | 1.430 g |
| Custom tariff number | 39269097 |
| Country of origin | PL (Poland) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027141199eCl@ss 4.127141199eCl@ss 5.027141135eCl@ss 5.127141100eCl@ss 6.027141100eCl@ss 7.027141135eCl@ss 8.027141135eCl@ss 9.027141135
| Feature Name | Feature Value |
|---|---|
| Colour (EF000007) | Grey |
| Mounting method (EF000003) | DIN rail (top hat rail) 15 mm |
| Type of latching (EF002667) | Screw fix |
| Material (EF002169) | Other |
| Material quality (EF001257) | Polyamide (PA) |
| Inflammability class of insulation material according to UL94 (EF002521) | V2 |
| Height (EF000040) | 22 mm |
| Depth (EF000049) | 11.4 mm |
