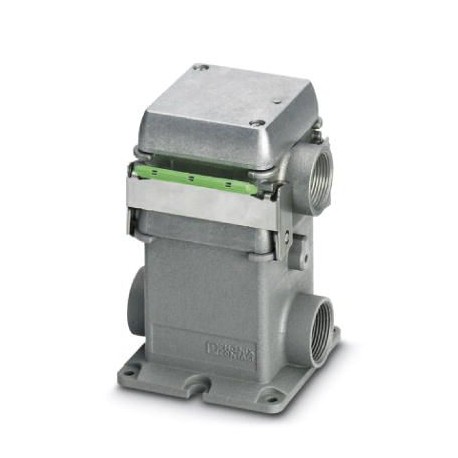

DC-B 6-SET-TB-M25-M-7X4-UT 1581036 PHOENIX CONTACT T box
DC-B 6-SET-TB-M25-M-7X4-UT
1581036
PHOENIX CONTACT
1 Pcs.
T box
DUPLICON, Aluminium T-Box set with DUPLICON 6 x 4 mm² + PE contact insert with 2 screw connections per pole, B6 design, IP67 degree of protection, 2 threads for M25 cable gland (without cable gland)
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1581036 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 675 (C-2-2017) |
| GTIN | 4046356154819 |
| Weight per Piece (excluding packing) | 604.000 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Ambient conditions
| Degree of protection | IP65/IP66/IP67 |
|---|---|
| Ambient temperature (operation) | -40 °C ... 100 °C |
Electrical characteristics
| Rated voltage (III/3) | 400 V (L-PE) |
|---|---|
| 690 V (L-L) | |
| Rated surge voltage | 6 kV |
| Rated current | 25 A (with 4 mm² conductor cross section) |
| Maximum load current | 32 A (L1/L2/L3) |
| Overvoltage category | III |
| Degree of pollution | 3 |
Material data
| Contact material | Copper alloy |
|---|---|
| Contact surface material | Ag |
| Contact carrier material | PA |
| Housing material | Aluminum die-cast |
| Housing surface material | uncoated |
| Seal material | NBR |
| Locking latch material | Stainless steel |
| Material grip body interlock | PA |
General
| Type | DC-B6 |
|---|---|
| Color | pearl gray |
| Insertion/withdrawal cycles | ≥ 100 |
| Number of positions | 6 |
| Stripping length of the individual wire | 10 mm |
| Conductor cross section | 0.2 mm² ... 4 mm² (6 mm² without ferrule) |
| Connection cross section AWG | 24 ... 12 |
| Tightening torque | 0.5 Nm ... 0.6 Nm |
| Pg screw connection | none |
| Type of the screw connection | with M25 thread |
| Cable outlet | lateral |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
