View larger
Images are for illustrative purposes only. Please refer to data sheet for details

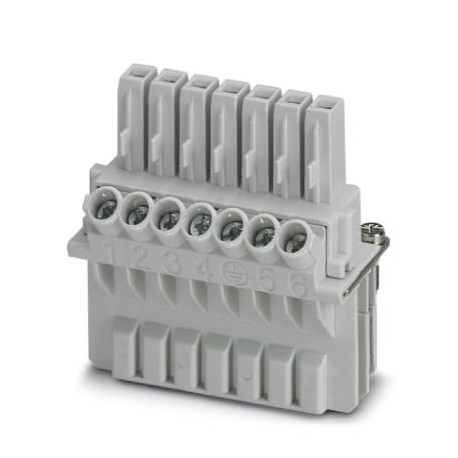

DC-B 6-ID-7X4-UT 1602203 PHOENIX CONTACT Contact insert
DC-B 6-ID-7X4-UT
1602203
PHOENIX CONTACT
1 Pcs.
Contact insert
DUPLICON, contact insert for plug-in connector, 6 x 4 mm² + PE, 400/690 V, 25 A, screw connection, B6 construction, IP20 protection degree
Connectors > Contact insert for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1602203 |
|---|---|
| Packing unit | 10 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 676 (C-2-2017) |
| GTIN | 4046356027908 |
| Weight per Piece (excluding packing) | 54.800 g |
| Custom tariff number | 85369010 |
| Country of origin | DE (Germany) |
Electrical characteristics
| Rated voltage (III/3) | 400 V (L-PE) |
|---|---|
| 690 V (L-L) | |
| Rated surge voltage | 6 kV |
| Rated current | 25 A |
| Overvoltage category | III |
| Degree of pollution | 3 |
General
| Type | DC-B6 |
|---|---|
| Color | gray |
| Insertion/withdrawal cycles | ≥ 100 |
| Number of positions | 6 |
| Stripping length of the individual wire | 10 mm |
| Stripping length of the sheath | 65 mm |
| Conductor cross section | 0.2 mm² ... 4 mm² (6 mm² without ferrule) |
| Connection cross section AWG | 24 ... 12 (AWG 10 without ferrule) |
| Tightening torque | 0.5 Nm ... 0.6 Nm |
Standards and Regulations
| Connection in acc. with standard | CUL |
|---|---|
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
