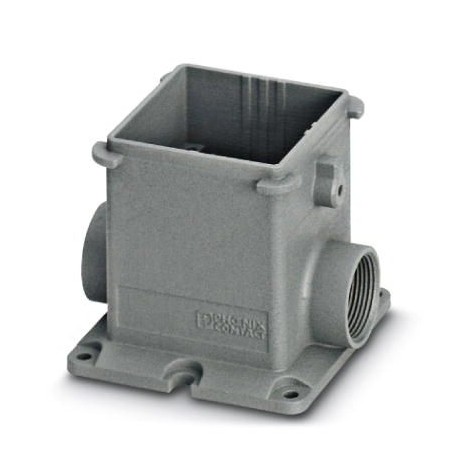

DC-B 6-HTC-M20-M20-M 1581049 PHOENIX CONTACT T box
DC-B 6-HTC-M20-M20-M
1581049
PHOENIX CONTACT
1 Pcs.
T box
DUPLICON, Aluminium T-Box, B6 Construction, IP67 Degree of Protection, 2 Threads for M20 Cable Gland (without Cable Gland)
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1581049 |
|---|---|
| Packing unit | 10 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 679 (C-2-2017) |
| GTIN | 4046356154833 |
| Weight per Piece (excluding packing) | 200.000 g |
| Custom tariff number | 85389099 |
| Country of origin | SI (Slovenia) |
Ambient conditions
| Degree of protection of housing (IP) | IP65 |
|---|---|
| IP66 | |
| IP67 | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
General
| Size | DC-B6 |
|---|---|
| Number of positions | 0 |
| Housing type | Box mounting bases |
| Color | gray aluminum |
| Locking type | Double locking latch |
| No. of cable outlets | 2 |
| Cable outlet | lateral |
| Screw connection | none |
| Type of the screw connection | with M20 thread |
| Protective cover | no |
| Housing material | Aluminum die-cast |
| Housing surface material | uncoated |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
