View larger
Images are for illustrative purposes only. Please refer to data sheet for details

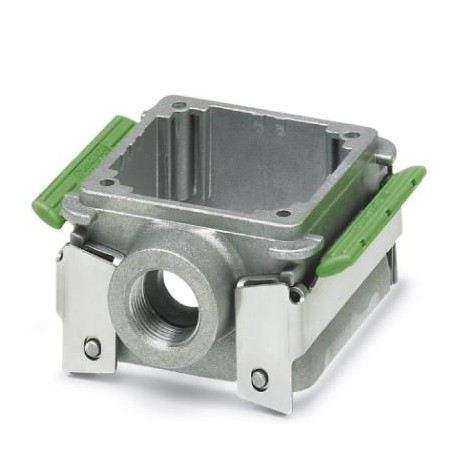

DC-B 6-HD-M20-M 1602041 PHOENIX CONTACT Stackable housing
DC-B 6-HD-M20-M
1602041
PHOENIX CONTACT
1 Pcs.
Stackable housing
DUPLICON, stackable aluminium housing for DUPLICON contact inserts, B6 construction, IP67 degree of protection, with two locking flanges, gasket and one thread for M20 cable gland (without cable gland)
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1602041 |
|---|---|
| Packing unit | 10 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 679 (C-2-2017) |
| GTIN | 4046356027748 |
| Weight per Piece (excluding packing) | 165.330 g |
| Custom tariff number | 85389099 |
| Country of origin | SI (Slovenia) |
Ambient conditions
| Degree of protection of housing (IP) | IP65 |
|---|---|
| IP66 | |
| IP67 | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
General
| Size | DC-B6 |
|---|---|
| Housing type | Stackable housing |
| Color | gray |
| Locking type | with double locking latch |
| No. of cable outlets | 1 |
| Cable outlet | lateral |
| Screw connection | none |
| Type of the screw connection | with M20 thread |
| Protective cover | no |
| Housing material | Aluminum die-cast |
| Housing surface material | EMC-conductive |
| Seal material | NBR |
| Material lock | Stainless steel |
| Material grip body interlock | PA |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
