View larger
Images are for illustrative purposes only. Please refer to data sheet for details

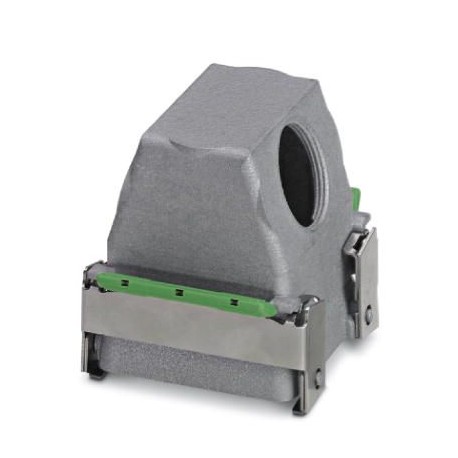

DC-B 6-H-80/O1STM20S-M 1581117 PHOENIX CONTACT Housing
DC-B 6-H-80/O1STM20S-M
1581117
PHOENIX CONTACT
1 Pcs.
Housing
DUPLICON, stackable aluminium housing for DUPLICON contact inserts, B6 construction, IP67 degree of protection, with two locking flanges, gasket and threads for M20 cable gland (without cable gland), inclined outlet
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1581117 |
|---|---|
| Packing unit | 10 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 662 (C-4-2015) |
| GTIN | 4046356428019 |
| Weight per Piece (excluding packing) | 293.800 g |
| Custom tariff number | 85389099 |
| Country of origin | SI (Slovenia) |
Ambient conditions
| Degree of protection of housing (IP) | IP65 |
|---|---|
| IP66 | |
| IP67 | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
General
| Size | DC-B6 |
|---|---|
| Housing type | Sleeve housing |
| Color | gray |
| Locking type | With locking latch |
| Cable outlet | lateral |
| Screw connection | none |
| Type of the screw connection | With 2x M20 thread |
| Housing material | Aluminum die-cast |
| Housing surface material | EMC-conductive |
| Seal material | NBR |
| Material lock | Stainless steel |
| Material grip body interlock | PA |
