View larger
Images are for illustrative purposes only. Please refer to data sheet for details

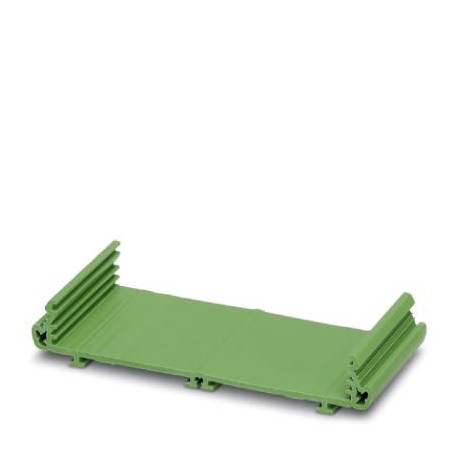

UM 108-PROFIL 100CM 2907525 PHOENIX CONTACT Electronic housing
UM 108-PROFIL 100CM
2907525
PHOENIX CONTACT
1 Pcs.
Electronic housing
Extruded profile boxes, Basic profile, colour: green (6021), open, profile width (inside): 122.6 mm, profile width (outside): 107.5 mm, length: 1000 mm, depth: 21.5 mm, Note: profile length required = printed circuit board length - 3.6 mm
Automation > Extruded profile modular housing
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2907525 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 757 (C-1-2013) |
| GTIN | 4017918336653 |
| Weight per Piece (excluding packing) | 605.000 g |
| Custom tariff number | 39162000 |
| Country of origin | DE (Germany) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 10.0.127182701eCl@ss 4.027180401eCl@ss 4.127180401eCl@ss 5.027180506eCl@ss 5.127180500eCl@ss 6.027180800eCl@ss 7.027182701eCl@ss 8.027182701eCl@ss 9.027182701
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Closed |
| Housing connectable (EF003088) | No |
| Material (EF002169) | Other |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Green |
| RAL-number (EF000116) | 6021 |
| Width (EF000008) | 1000 mm |
| Height (EF000040) | 122.6 mm |
| Depth (EF000049) | 21.5 mm |
