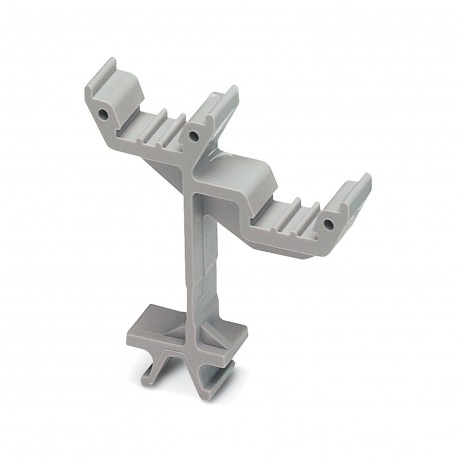

STP 5-2-ZB 3037643 PHOENIX CONTACT Marker carriers
STP 5-2-ZB
3037643
PHOENIX CONTACT
100 Pcs.
Marker carriers
Double holder for indexes, can be fitted into the spring terminals ST 2.5..., can be labelled with ZB 5 or ZBF 5
Marker carriers, snaps into ST 2,5 spring-cage terminal blocks, can be marked with UC-TM 5, UC-TMF 5, UCT-TM 5, UCT-TMF 5, ZB 5, or ZBF 5, gray, unlabeled, mounting type: latching, text field height: 10.5 mm, text field width: 5 mm
Automation > Mounting for labelling material
MS Material
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Marker carriers |
| Data management status | |
| Article revision | 01 |
Dimensions
| Width | 5 mm |
| Text field width | 5.00 mm |
| Height | 28.6 mm |
| Text field height | 10.50 mm |
| Length | 24.9 mm |
Material specifications
| Color | gray (RAL 7042) |
| Material | PA |
| Flammability rating according to UL 94 | V2 |
| Relative insulation material temperature index (Elec., UL 746 B) | 125 °C |
| Components | free from silicone and halogen |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 100 °C |
| Recommended ambient temperature (storage/transport) | 23 °C |
| Recommended humidity (storage/transport) | 50 % |
Mounting
| Mounting type | latching |
| Feature Name | Feature Value |
|---|---|
| Material (EF002169) | Other |
| Width (EF000008) | 5 mm |
| Height (EF000040) | 24.9 mm |
