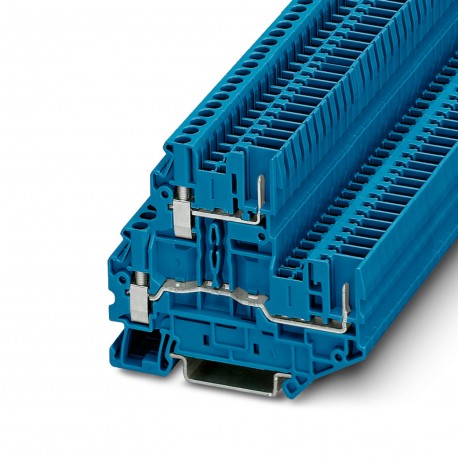

PHOENIX CONTACT UTTB 2,5/2P BU UTTB 2,5/2P BU 3060364 PHOENIX CONTACT Double-level terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

UTTB 2,5/2P BU 3060364 PHOENIX CONTACT Double-level terminal block

UTTB 2,5/2P BU

3060364

PHOENIX CONTACT

50 Pcs.

Double-level terminal block Double-level terminal block, Current and voltage are determined by the connector used., nominal voltage: 500 V, nominal current: 24 A, connection type: Screw connection / plug-in connection, Dimensioning cross-section: 2.5 mm², cross-section: 0.14 mm² - 4 mm², mounting class: NS 35/7.5, NS 35/15, color: blue Double-level terminal block, Current and voltage are determined by the plug used., nom. voltage: 500 V, nominal current: 24 A, connection method: Screw/plug-in connection, Rated cross section: 2.5 mm2, cross section: 0.14 mm2 - 4 mm2, mounting type: NS 35/7,5, NS 35/15, color: blue

Automation > Feed-through terminal block
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
GeneralCurrent and voltage are determined by the plug used.
Product properties
Product typePlug-in terminal block
Number of connections4
Number of rows2
Potentials2
Data management status
Article revision06
Insulation characteristics
Overvoltage categoryIII
Degree of pollution3
Electrical properties
Rated surge voltage6 kV
Maximum power dissipation for nominal condition0.77 W
Connection data
Number of connections per level2
Nominal cross section2.5 mm²
Level 1+2
Screw threadM3
Tightening torque0.5 ... 0.6 Nm
Stripping length9 mm
Internal cylindrical gageA3
Connection in acc. with standardIEC 61984
Conductor cross section rigid0.14 mm² ... 4 mm²
Cross section AWG26 ... 12 (converted acc. to IEC)
Conductor cross section flexible0.14 mm² ... 4 mm²
Conductor cross section, flexible [AWG]26 ... 12 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)0.14 mm² ... 2.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve)0.14 mm² ... 2.5 mm²
2 conductors with same cross section, solid0.14 mm² ... 1.5 mm²
2 conductors with same cross section, flexible0.14 mm² ... 1.5 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve0.14 mm² ... 1.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve0.5 mm² ... 1.5 mm²
Nominal current24 A
Maximum load current24 A (with 4 mm² conductor cross section)
Nominal voltage500 V
Nominal cross section2.5 mm²
Dimensions
Width5.2 mm
End cover width2.2 mm
Height69.9 mm
Depth64.4 mm
Depth on NS 35/7,565 mm
Depth on NS 35/1572.5 mm
Material specifications
Colorblue (RAL 5015)
Flammability rating according to UL 94V0
Insulating material groupI
Insulating materialPA
Static insulating material application in cold-60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))130 °C
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354)28 MJ/kg
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed
Mechanical properties
Mechanical data
Open side panelYes
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation)-60 °C (max. operating temperature see derating curve)
Ambient temperature (storage/transport)-25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C)
Ambient temperature (assembly)-5 °C ... 70 °C
Ambient temperature (actuation)-5 °C ... 70 °C
Permissible humidity (operation)20 % ... 90 %
Permissible humidity (storage/transport)30 % ... 70 %
Standards and regulations
Connection in acc. with standardIEC 61984
Mounting
Mounting typeNS 35/7,5
NS 35/15

ETIM for 3060364 Terminal blocks (EC000897)
Feature Name Feature Value
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.14 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.14 mm²
Connectable conductor cross section solid-core (EF007337) 0.14 mm²
Connectable conductor cross section multi-wired (EF007343) 0.14 mm²
Rated current In (EF008250) 24 A
Rated voltage (EF000228) 500 V
Type of electrical connection 1 (EF002526) Other
Type of electrical connection 2 (EF002527) Other
Number of levels (EF002659) 2
Number of clamp positions per level (EF002660) 2
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
Material insulation body (EF007543) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
Width (EF000008) 5.2 mm
Height (EF000040) 69.9 mm
Depth (EF000049) 64.4 mm
Closing plate required (EF002525) Yes
Colour (EF000007) Blue
Internally connected stages (EF002661) No

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
