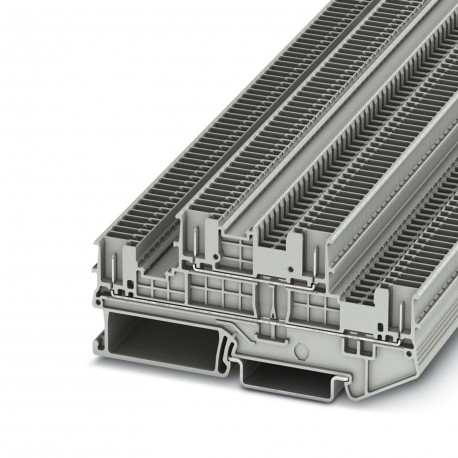

PHOENIX CONTACT PTTB 1,5/S/4P PTTB 1,5/S/4P 3213865 PHOENIX CONTACT Double-level terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PTTB 1,5/S/4P 3213865 PHOENIX CONTACT Double-level terminal block

PTTB 1,5/S/4P

3213865

PHOENIX CONTACT

50 Pcs.

Double-level terminal block Double-level terminal, Current and voltage are determined by the connector used., nominal voltage: 500 V, nominal current: 16 A, connection type: Plug-in connection, 1st and 2nd floor, Dimensioning section: 1.5 mm², cross-section: 0.14 mm² - 1.5 mm², mounting class: NS 35/7.5, NS 35/15, color: gray Double-deck terminal, Current and voltage are determined by the plug used., rated voltage: 500 V, rated current: 16 A, connection type: Connector connection, 1. and 2. table, Dimensioning section: 1.5 mm2, Section: 0.14 mm2 - 1.5 mm2, Mounting type: NS 35/7.5, NS 35/15, Colour: grey

Automation > Feed-through terminal block
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey3213865
Packing unit50 pc
Minimum order quantity50 pc
Catalog pagePage 280 (C-1-2017)
GTIN4046356575720
Weight per Piece (excluding packing)7.140 g
Custom tariff number85369010
Country of originPL (Poland)

General

Number of levels2
Number of connections4
Nominal cross section1.5 mm²
Colorgray
Insulating materialPA
Flammability rating according to UL 94V0
Area of applicationRailway industry
Machine building
Plant engineering
Rated surge voltage6 kV
Degree of pollution3
Overvoltage categoryIII
Insulating material groupI
Maximum power dissipation for nominal condition0.56 W (the value is multiplied when connecting multiple levels)
Connection in acc. with standardIEC 61984
Nominal current IN16 A (observe derating)
Maximum load current16 A (with 1.5 mm² conductor cross section)
Nominal voltage UN500 V
Open side panelYes
Insertion/withdrawal cycles mechanical100
Result of tight fit on supportTest passed
Tight fit on carrierNS 35
Setpoint1 N
Result of thermal testTest passed
Proof of thermal characteristics (needle flame) effective duration30 s
Oscillation, broadband noise test resultTest passed
Test specification, oscillation, broadband noiseDIN EN 50155 (VDE 0115-200):2008-03
Test spectrumService life test category 1, class B, body mounted
Test frequencyf1= 5 Hz to f2= 150 Hz
ASD level1.857 (m/s2)2/Hz
Acceleration0,8 g
Test duration per axis5 h
Test directionsX-, Y- and Z-axis
Shock test resultTest passed
Test specification, shock testDIN EN 50155 (VDE 0115-200):2008-03
Shock formHalf-sine
Acceleration5 g
Shock duration30 ms
Number of shocks per direction3
Test directionsX-, Y- and Z-axis (pos. and neg.)
Relative insulation material temperature index (Elec.; UL 746 B)130 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))130 °C
Static insulating material application in cold-60 °C
Behavior in fire for rail vehicles (DIN 5510-2)Test passed
Flame test method (DIN EN 60695-11-10)V0
Oxygen index (DIN EN ISO 4589-2)>32 %
NF F16-101, NF F10-102 Class I2
NF F16-101, NF F10-102 Class F2
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed
Calorimetric heat release NFPA 130 (ASTM E 1354)28 MJ/kg
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3

Dimensions

Width3.5 mm
Length93.9 mm
Height NS 35/7,542.6 mm
Height NS 35/1550.1 mm

Connection data

Connection methodPush-in connection
Conductor cross section solid min.0.14 mm²
Conductor cross section solid max.1.5 mm²
Conductor cross section flexible min.0.14 mm²
Conductor cross section flexible max.1.5 mm²
Conductor cross section AWG min.26
Conductor cross section AWG max.14
Conductor cross section flexible, with ferrule without plastic sleeve min.0.14 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.1.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.14 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.1 mm² Using the AI-S 1-8 TQ ferrule, Order No. 1200293, is recommended
Internal cylindrical gageA1 / B1

Standards and Regulations

Connection in acc. with standardCUL
IEC 61984
Flammability rating according to UL 94V0
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 3213865 Terminal blocks (EC000897)
Feature Name Feature Value
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.14 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.14 mm²
Connectable conductor cross section solid-core (EF007337) 0.14 mm²
Rated current In (EF008250) 16 A
Rated voltage (EF000228) 500 V
Type of electrical connection 1 (EF002526) Plug-in connection
Type of electrical connection 2 (EF002527) Plug-in connection
Number of levels (EF002659) 2
Number of clamp positions per level (EF002660) 2
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
Material insulation body (EF007543) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
Width (EF000008) 3.5 mm
Height (EF000040) 93.9 mm
Depth (EF000049) 42.6 mm
Closing plate required (EF002525) Yes
Colour (EF000007) Grey
Internally connected stages (EF002661) No

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
