View larger
Images are for illustrative purposes only. Please refer to data sheet for details

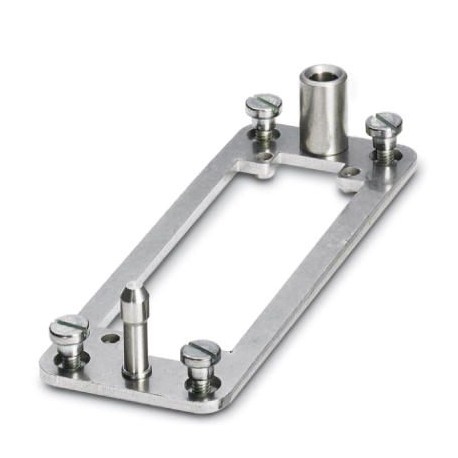

HC-B 24-ANDOCK 1586141 PHOENIX CONTACT Docking frames
HC-B 24-ANDOCK
1586141
PHOENIX CONTACT
2 Pcs.
Docking frames
Rack Coupling Frame, for Model B24 Contact Inserts, with 4 x M5 Flat Head Screws, X/Y Axis Frame Offset ± 1.5 mm
Connectors > Module carrier frame for industrial connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1586141 |
|---|---|
| Packing unit | 2 pc |
| Catalog page | Page 665 (C-2-2017) |
| GTIN | 4046356345750 |
| Weight per Piece (excluding packing) | 120.000 g |
| Custom tariff number | 85389099 |
| Country of origin | DE (Germany) |
General
| Material | Stainless steel |
|---|---|
| Type | B24 |
| Assembly instructions | Due to the floating docking frame, a metal attachment panel must be grounded. |
| Connection | For contact inserts from series B24, D64, DD108, BB46, BBB64, K, M |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027189207eCl@ss 5.127189200eCl@ss 6.027261200eCl@ss 7.027440210eCl@ss 8.027440210eCl@ss 9.027440206
| Feature Name | Feature Value |
|---|---|
| With protective conductor (EF007468) | No |
| Min. number of insertion cycles (EF012212) | 500 |
| Inflammability class of insulation material according to UL94 (EF002521) | Other |
