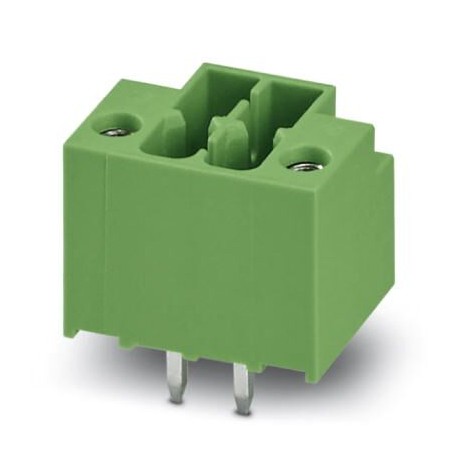

PHOENIX CONTACT DMCV 1,5/17-G1F-3,5-LR P35 DMCV 1,5/17-G1F-3,5-LR P35 1054078 PHOENIX CONTACT PCB headers, nominal current: 8 A, rated voltage (III/2):.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DMCV 1,5/17-G1F-3,5-LR P35 1054078 PHOENIX CONTACT PCB headers, nominal current: 8 A, rated voltage (III/2):..

DMCV 1,5/17-G1F-3,5-LR P35

1054078

PHOENIX CONTACT

50 Pcs.

PCB headers, nominal current: 8 A, rated voltage (III/2): 160 V, nominal cross section: 1.5 mm², number of positions: 17, pitch: 3.5 mm, color: green, contact surface: Tin, mounting: Wave soldering, solder pin [P]: 3.5 mm Printed circuit board base housing, nominal section: 1.5 mm², color: green, nominal current: 8 A, nominal voltage (III/2): 160 V, contact surface: Tin, contact type: Male, number of potentials: 34, number of rows: 2, number of poles: 17, number of connections: 34, family of articles: DMCV 1.5/.. -G1F, pitch: 3.5 mm, mounting: Wave welding, pin arrangement: Linear pin arrangement, pin length [P]: 3.5 mm, number of solder pins per potential: 1, plug-in system: COMBICON DFMC 1.5, Plug-in face orientation: Standard, lock: Snap-in lock, fixing type: Lock & Release air clamping (thread), packaging type: boxed

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1054078
Packing unit1 pc
Minimum order quantity50 pc
GTIN4055626688411
Weight per Piece (excluding packing)0.000 g
Custom tariff number85366930
Country of originCN (China)

Drawings

Diagram

Diagram
Type: DFMC 1,5/...-ST-3,5-LR with DMCV 1,5/...-G1F-3,5-LR P35

Schematic diagram

Schematic diagram
Use of the CP-DMC... coding profile

Back to top

Item properties

Brief article descriptionFeed-through header
Plug-in systemMINI COMBICON - DFMC 1,5
Type of contactMale connector
Range of articlesDMCV 1,5/..-G1F
Pitch3.5 mm
Number of positions17
Mounting typeWave soldering
Number of levels2
Number of connections34
Number of potentials34
Back to top

Electrical parameters

Nom. voltage160 V
Back to top

Material data - contact

NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicsTin-plated
Metal surface contact area (top layer)Tin (4 - 8 µm Sn)
Metal surface contact area (middle layer)Nickel (1.5 - 4 µm Ni),
Metal surface soldering area (top layer)Tin (4 - 8 µm Sn)
Metal surface soldering area (middle layer)Nickel (1.5 - 4 µm Ni)
Back to top

Material data - housing

Insulating materialPBT
Insulating material groupIIIa
CTI according to IEC 60112225
Flammability rating according to UL 94V0
Back to top

Dimensions for the product

Length [ l ]10.6 mm
Width [ w ]66.5 mm
Height [ h ]13.5 mm
Pitch3.5 mm
Height (without solder pin)10 mm
Solder pin [P]3.5 mm
Pin spacing5.50 mm
Pin dimensions0.8 x 0.8 mm
Dimension a56 mm
Back to top

Dimensions for PCB design

Hole diameter1.2 mm
Pin spacing5.50 mm
Back to top

Packaging information

Type of packagingpacked in cardboard
Pieces per package50
Denomination packing unitsPcs.
Back to top

Ambient conditions

Ambient temperature (storage/transport)-40 °C ... 70 °C
Ambient temperature (assembly)-5 °C ... 100 °C
Ambient temperature (operation)-40 °C ... 100 °C (dependent on the derating curve)
Back to top

Air clearances and creepage distances

Clearances and creepage distancesIEC 60664-1:2007-04
SpecificationIEC 60664-1:2007-04
Rated insulation voltage (III/3)160 V
Rated insulation voltage (III/2)160 V
Rated insulation voltage (II/2)250 V
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Minimum clearance - inhomogeneous field (III/3)1.5 mm
Minimum clearance - inhomogeneous field (III/2)1.5 mm
Minimum clearance - inhomogeneous field (II/2)1.5 mm
Minimum creepage distance value (III/3)2.5 mm
Minimum creepage distance value (III/2)1.6 mm
Minimum creepage distance value (II/2)2.5 mm
Back to top

Mechanical tests (A)

Test specificationIEC 61984
Insertion strength per pos. approx.3 N
Withdraw strength per pos. approx.2 N
Polarization when inserted requirement >20 NTest passed
Contact holder in insert requirements >20 NTest passed
Back to top

Durability tests (B)

SpecificationIEC 60512-9-1:2010-03
Contact resistance R12.3 mΩ
Insertion/withdrawal cycles25
Contact resistance R22.6 mΩ
Impulse withstand voltage at sea level2.95 kV
Power-frequency withstand voltage1.39 kV
Back to top

Climatic tests (D)

SpecificationISO 6988:1985-02
Cold stress-40 °C/2 h
Thermal stress105 °C/168 h
Corrosive stress0.2 dm3SO2on 300 dm3/40 °C/1 cycle
Impulse withstand voltage at sea level2.95 kV
Power-frequency withstand voltage1.39 kV
Back to top

Environmental and durability tests (E)

SpecificationIEC 61984:2008-10
Result, degree of protection, IP codeFinger safety with IP20 test finger
Back to top

Vibration test

SpecificationIEC 60068-2-6:2007-12
ResultTest passed
Frequency10 - 150 - 10 Hz
Sweep speed1 octave/min
Amplitude0.35 mm (10 - 60.1 Hz)
Acceleration5 g (60.1 - 150 Hz)
Test duration per axis2.5 h
Back to top

Standards and Regulations

Connection in acc. with standardEN-VDE
Flammability rating according to UL 94V0
Back to top

Classifications

eCl@ss

eCl@ss 4.027260700
eCl@ss 4.127260700
eCl@ss 5.027260700
eCl@ss 5.127260700
eCl@ss 6.027260700
eCl@ss 7.027440402
eCl@ss 8.027440402
eCl@ss 9.027440402
Back to top

ETIM

ETIM 5.0EC002637
ETIM 6.0EC002637
ETIM 7.0EC002637
Back to top

ETIM for 1054078 Connectors (EC002637)
Feature Name Feature Value
Connector model (EF007495) Fixed connector
Contact type (EF001587) Pin
Number of poles (EF001391) 34
Number of plug-in contact rows (EF006935) 2
Modular spacing contacts (EF007326) 3.5 mm
Modular spacing connections (EF006827) 3.5 mm
Rated current In (EF008250) 8 A
Rated voltage (EF000228) 160 V
Rated surge voltage (EF002993) 2.5 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Material of contact surface (EF004020) Tin
Type of electric connection (EF003961) Other
Diameter connection pin (EF006823) 1.2 mm
Length pin (EF006825) 3.5 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Green
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of fastening (EF002442) Engage (snap)
Type of banding (EF007011) Carton (for SMD)
