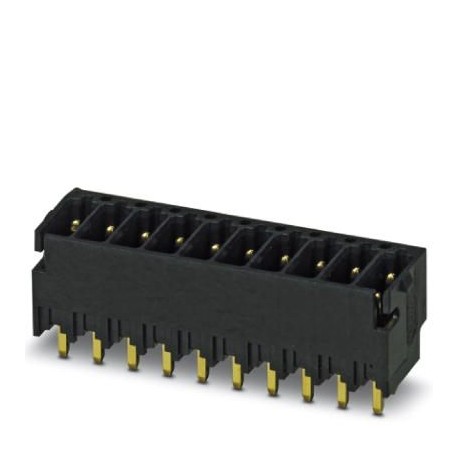

PHOENIX CONTACT DMCV 0,5/ 8-G1-2,54 P20THR R44 DMCV 0,5/ 8-G1-2,54 P20THR R44 1844934 PHOENIX CONTACT Printed-circuit board connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DMCV 0,5/ 8-G1-2,54 P20THR R44 1844934 PHOENIX CONTACT Printed-circuit board connector

DMCV 0,5/ 8-G1-2,54 P20THR R44

1844934

PHOENIX CONTACT

330 Pcs.

Printed-circuit board connector Printed circuit board base housing, nominal section: 0.5 mm², color: black, nominal current: 6 A, nominal voltage (III/2): 160 V, contact surface: Gold, contact type: Male, number of potentials: 16, number of rows: 2, number of poles: 8, number of connections: 16, article family: DMCV 0.5/.. -G1-THR, pitch: 2.54 mm, mounting: Weld THR, pin arrangement: Linear pin arrangement, pin length [P]: 2 mm, number of solder pins per potential: 1, plug-in system: COMBICON DFMC 0.5, Plug-in face orientation: Standard, lock: without, fixing type: without, packing type: 44 mm wide strap, Sample quantities available under SAMPLE DMC...

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1844934
Packing unit330 pc
Minimum order quantity330 pc
NoteMade to Order (non-returnable)
GTIN4046356964463
Weight per Piece (excluding packing)2.970 g
Custom tariff number85366930
Country of originDE (Germany)

Dimensions

Length [ l ]7.39 mm
Width21.62 mm
Pitch2.54 mm
Dimension a17.78 mm
Width [ w ]21.62 mm
Height [ h ]7.1 mm
Length of the solder pin2 mm
Pin dimensions0.64 x 0.64 mm
Pin spacing2.54 mm
Length7.39 mm

General

Range of articlesDMCV 0,5/..-G1-THR
Insulating material groupIIIa
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)32 V
Rated voltage (III/2)160 V
Rated voltage (II/2)160 V
Connection in acc. with standardEN-VDE
Nominal current IN6 A
Insulating materialLCP
Flammability rating according to UL 94V0
Colorblack
Number of positions8

Standards and Regulations

Connection in acc. with standardEN-VDE
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
