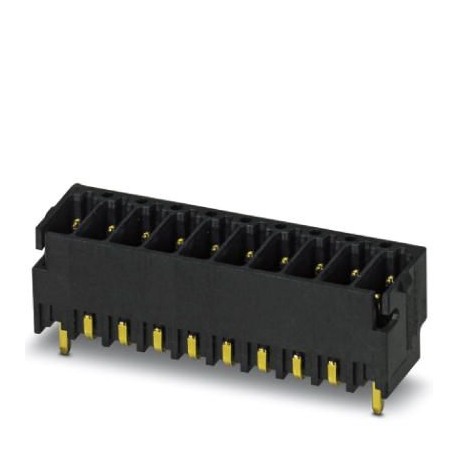

PHOENIX CONTACT DMCV 0,5/ 6-G1-2,54 SMD R44 DMCV 0,5/ 6-G1-2,54 SMD R44 1845218 PHOENIX CONTACT Printed-circuit board connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DMCV 0,5/ 6-G1-2,54 SMD R44 1845218 PHOENIX CONTACT Printed-circuit board connector

DMCV 0,5/ 6-G1-2,54 SMD R44

1845218

PHOENIX CONTACT

330 Pcs.

Printed-circuit board connector Base housing printed circuit board, nominal section: 0.5 mm², color: black, rated current: 6 A, sizing voltage (III/2): 160 V, surface contacts: Gold, contact type: Male, Number of potentials: 12, Number of rows: 2, Number of poles per row: 6, number of connections: 12, article family: DMCV 0,5/.. -G1-SMD, pitch: 2.54 mm, mounting: SMD welding, pin arrangement: Linear pad geometry, pin length [P]: 2 mm, Stecksystem: MICRO COMBICON - DFMC 0.5, Locking: sin, type of packaging: 44 mm wide strap, Sample quantities available under SAMPLE DMC...

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1845218
Packing unit330 pc
Minimum order quantity330 pc
NoteMade to Order (non-returnable)
GTIN4046356965057
Weight per Piece (excluding packing)2.220 g
Custom tariff number85366930
Country of originDE (Germany)

Dimensions

Length [ l ]7.39 mm
Width15.74 mm
Pitch2.54 mm
Dimension a12.7 mm
Width [ w ]15.74 mm
Height [ h ]9.1 mm
Height7.1 mm
Pin dimensions0.64 x 0.64 mm
Pin spacing2.54 mm
Length7.39 mm

General

Range of articlesDMCV 0,5/..-G1-SMD
Insulating material groupIIIa
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)32 V
Rated voltage (III/2)160 V
Rated voltage (II/2)160 V
Connection in acc. with standardEN-VDE
Nominal current IN6 A
Insulating materialLCP
Flammability rating according to UL 94V0
Colorblack
Number of positions6

Standards and Regulations

Connection in acc. with standardEN-VDE
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1845218 Connectors (EC002637)
Feature Name Feature Value
Connector model (EF007495) Fixed connector
Contact type (EF001587) Pin
Number of poles (EF001391) 12
Number of plug-in contact rows (EF006935) 2
Modular spacing contacts (EF007326) 2.54 mm
Modular spacing connections (EF006827) 2.54 mm
Rated current In (EF008250) 6 A
Rated voltage (EF000228) 160 V
Rated surge voltage (EF002993) 2.5 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Material of contact surface (EF004020) Gold
Type of electric connection (EF003961) Other
Diameter connection pin (EF006823) 1.2 mm
Length pin (EF006825) 2 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Black
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of fastening (EF002442) Other
Type of banding (EF007011) Other
