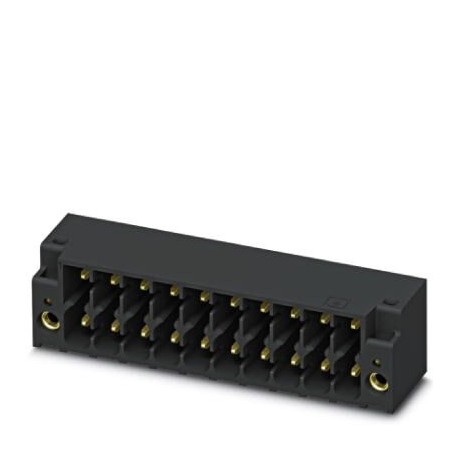

PHOENIX CONTACT DMC 1,5/ 5-G1F-3,5-LRP26AUTHR DMC 1,5/ 5-G1F-3,5-LRP26AUTHR 1017076 PHOENIX CONTACT Printed-circuit board connector DMC 1,5/ 5-G1F-3,5-LRP.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DMC 1,5/ 5-G1F-3,5-LRP26AUTHR 1017076 PHOENIX CONTACT Printed-circuit board connector DMC 1,5/ 5-G1F-3,5-LRP..

DMC 1,5/ 5-G1F-3,5-LRP26AUTHR

1017076

PHOENIX CONTACT

500 Pcs.

Printed-circuit board connector - DMC 1,5/ 5-G1F-3,5-LRP26AUTHR - 1017076 Printed circuit board base housing, nominal section: 1.5 mm², color: black, nominal current: 8 A, nominal voltage (III/2): 160 V, contact surface: Gold, contact type: Male, number of potentials: 10, number of rows: 2, number of poles: 5, number of connections: 10, article family: DMC 1.5/.. -G1F-THR, pitch: 3.5 mm, mounting: Weld THR, pin arrangement: Linear pin arrangement, pin length [P]: 2.6 mm, number of welding pins per potential: 1, plug-in system: COMBICON DFMC 1.5, Plug-in face orientation: Standard, lock: Snap-in lock, fixing type: Lock & Release air clamping (thread), packaging type: 56 mm wide strap PCB headers, nominal current: 8 A, rated voltage (III/2): 160 V, nominal cross section: 1.5 mm², number of positions: 5, pitch: 3.5 mm, color: black, contact surface: Gold, mounting: THR soldering, pin layout: Linear pinning, solder pin [P]: 2.6 mm

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1017076
Packing unit1
GTIN4055626499871
Custom tariff number85366930

Drawings

Diagram

Diagram
Type: DFMC 1,5/...-ST-3,5-LR AU with DMC 1,5/...-G1F-3,5-LRP...AUTHR

Back to top

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Back to top

Classifications

eCl@ss

eCl@ss 4.027260700
eCl@ss 4.127260700
eCl@ss 5.027260700
eCl@ss 5.127260700
eCl@ss 6.027260700
eCl@ss 7.027440402
eCl@ss 8.027440402
eCl@ss 9.027440402
Back to top

ETIM

ETIM 5.0EC002637
ETIM 6.0EC002637
ETIM 7.0EC002637
Back to top

ETIM for 1017076 Connectors (EC002637)
Feature Name Feature Value
Connector model (EF007495) Fixed connector
Contact type (EF001587) Pin
Number of poles (EF001391) 10
Number of plug-in contact rows (EF006935) 2
Modular spacing contacts (EF007326) 3.5 mm
Modular spacing connections (EF006827) 3.5 mm
Rated current In (EF008250) 8 A
Rated voltage (EF000228) 160 V
Rated surge voltage (EF002993) 2.5 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Material of contact surface (EF004020) Gold
Type of electric connection (EF003961) Other
Diameter connection pin (EF006823) 1.4 mm
Length pin (EF006825) 2.6 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Black
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of fastening (EF002442) Engage (snap)
Type of banding (EF007011) Other
