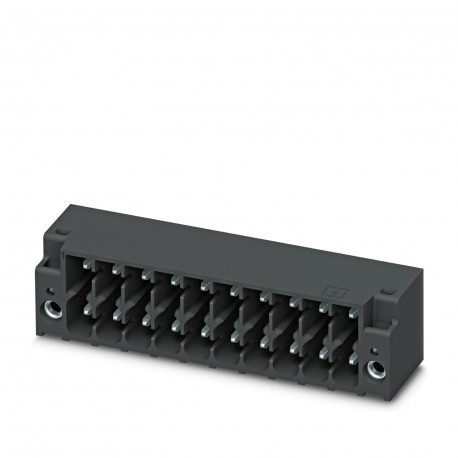

PHOENIX CONTACT DMC 1,5/17-G1F-3,5-LR P26THRR DMC 1,5/17-G1F-3,5-LR P26THRR 1100353 PHOENIX CONTACT Housing base printed circuit board, number of poles: 1.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DMC 1,5/17-G1F-3,5-LR P26THRR 1100353 PHOENIX CONTACT Housing base printed circuit board, number of poles: 1..

DMC 1,5/17-G1F-3,5-LR P26THRR

1100353

PHOENIX CONTACT

1 Pcs.


Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Housing base printed circuit board, number of poles: 17, pitch: 3.5 mm, color: black

Printed circuit board base housing, nominal section: 1.5 mm², color: black, nominal current: 8 A, nominal voltage (III/2): 160 V, contact surface: Tin, contact type: Male, number of rows: 2, number of poles: 17, family of articles: DMC 1.5/.. -G1F-THR, pitch: 3.5 mm, mounting: Weld THR, pin arrangement: Linear pin arrangement, pin length [P]: 2.6 mm, number of welding pins per potential: 1, plug-in system: COMBICON DFMC 1.5, Plug-in face orientation: Standard, lock: Snap-in lock, fixing type: Lock & Release air clamping (thread), packaging type: 88 mm wide strap
