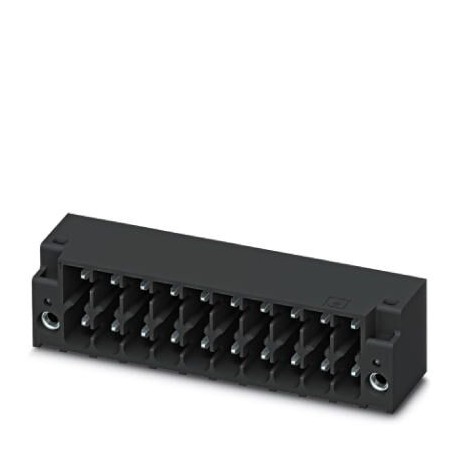

PHOENIX CONTACT DMC 1,5/16-G1F-3,5-LRP20THRR88 DMC 1,5/16-G1F-3,5-LRP20THRR88 1036681 PHOENIX CONTACT Printed-circuit board connector DMC 1,5/16-G1F-3,5-LR.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DMC 1,5/16-G1F-3,5-LRP20THRR88 1036681 PHOENIX CONTACT Printed-circuit board connector DMC 1,5/16-G1F-3,5-LR..

DMC 1,5/16-G1F-3,5-LRP20THRR88

1036681

PHOENIX CONTACT

180 Pcs.

Printed-circuit board connector - DMC 1,5/16-G1F-3,5-LRP20THRR88 - 1036681 Printed circuit board base housing, nominal section: 1.5 mm², color: black, nominal current: 8 A, nominal voltage (III/2): 160 V, contact surface: Tin, contact type: Male, number of potentials: 32, number of rows: 2, number of poles: 16, number of connections: 32, article family: DMC 1.5/.. -G1F-THR, pitch: 3.5 mm, mounting: Weld THR, pin arrangement: Linear pin arrangement, pin length [P]: 2 mm, number of solder pins per potential: 1, plug-in system: COMBICON DFMC 1.5, Plug-in face orientation: Standard, lock: Snap-in lock, fixing type: Lock & Release air clamping (thread), packaging type: 88 mm wide strap

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

PCB headers, nominal current: 8 A, rated voltage (III/2): 160 V, number of positions: 16, pitch: 3.5 mm, color: black, contact surface: Tin, mounting: THR soldering

Key Commercial Data

Orderkey1036681
Packing unit1
GTIN4055626542089
Custom tariff number85366930

Dimensions

Length [ l ]11.6 mm
Width63 mm
Pitch3.5 mm
Dimension a52.5 mm
Width [ w ]63 mm
Height [ h ]12.8 mm
Height10.8 mm
Length of the solder pin2 mm
Pin dimensions0.8 x 0.8 mm
Pin spacing2.50 mm
Length11.6 mm

General

Range of articlesDMC 1,5/..-G1F-THR
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/2)160 V
Rated voltage (II/2)250 V
Colorblack
Number of positions16

Classifications

eCl@ss

eCl@ss 5.127260700
eCl@ss 6.027260700
eCl@ss 7.027440402
eCl@ss 8.027440402
eCl@ss 9.027440402

ETIM

ETIM 5.0EC002637
ETIM 6.0EC002637
ETIM 7.0EC002637

ETIM for 1036681 Connectors (EC002637)
Feature Name Feature Value
Connector model (EF007495) Fixed connector
Contact type (EF001587) Pin
Number of poles (EF001391) 32
Number of plug-in contact rows (EF006935) 2
Modular spacing contacts (EF007326) 3.5 mm
Modular spacing connections (EF006827) 3.5 mm
Rated current In (EF008250) 8 A
Rated voltage (EF000228) 160 V
Rated surge voltage (EF002993) 2.5 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Material of contact surface (EF004020) Tin
Type of electric connection (EF003961) Other
Diameter connection pin (EF006823) 1.4 mm
Length pin (EF006825) 2 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Black
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of fastening (EF002442) Engage (snap)
Type of banding (EF007011) Other
