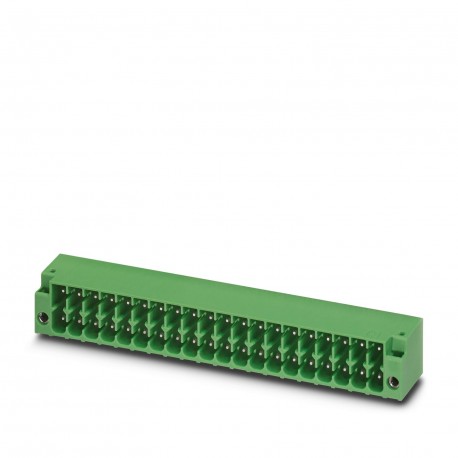

PHOENIX CONTACT DMC 1,5/15-G1F-3,5-LR P35 DMC 1,5/15-G1F-3,5-LR P35 1053878 PHOENIX CONTACT Housing base for printed circuit board, nominal current: 8.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DMC 1,5/15-G1F-3,5-LR P35 1053878 PHOENIX CONTACT Housing base for printed circuit board, nominal current: 8..

DMC 1,5/15-G1F-3,5-LR P35

1053878

PHOENIX CONTACT

50 Pcs.

Housing base for printed circuit board, nominal current: 8 A, voltage and sizing (III/2): 160 V, number of poles: 15, pitch: 3.5 mm, color: green, surface of contact: Tin, assembly: wave Soldering Printed circuit board base housing, nominal section: 1.5 mm², color: green, nominal current: 8 A, nominal voltage (III/2): 160 V, contact surface: Tin, contact type: Male, number of potentials: 30, number of rows: 2, number of poles: 15, number of connections: 30, family of articles: DMC 1.5/.. -G1F, pitch: 3.5 mm, mounting: Wave welding, pin arrangement: Linear pin arrangement, pin length [P]: 3.5 mm, number of solder pins per potential: 1, plug-in system: COMBICON DFMC 1.5, Plug-in face orientation: Standard, lock: Snap-in lock, fixing type: Lock & Release air clamping (thread), packaging type: boxed

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Item Properties
Product TypePrinted circuit board base housing
Product FamilyDMC 1.5/.. -G1F
Product LineCOMBICON Connectors S
Number of poles15
Step3.5 mm
Number of connections30
Number of rows2
Number of potentials30
Pin DesignLinear Pin Arrangement
Number of Solder Pins Per Potential1
Data Maintenance Status
Article Review00
Electrical Properties
Nominal Current IN8 A
Nominal voltage UN160 V
Contact resistance3 mΩ
Sizing voltage (III/3)160 V
Dimensioning transient voltage (III/3)2.5 kV
Dimensioning voltage (III/2)160 V
Dimensioning Transient Voltage (III/2)2.5 kV
Nominal voltage (II/2)250 V
Dimensioning transient voltage (II/2)2.5 kV
assembly
Type of mountingWave soldering
Pin DesignLinear Pin Arrangement
bridle
Tightening torque0.2 Nm
Material Data
Material data - contact
ObservationWEEE/RoHS compliant, filament-free according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu Alloy
Surface CharacteristicsGalvanically tinned
Metal surface contact area (top layer)Tin (4 - 8 μm Sn)
Metal Surface Contact Area (Middle Layer)Nickel (1.5 - 4 μm Ni)
Metal surface weld area (top layer)Tin (4 - 8 μm Sn)
Metal Surface Welding Area (Middle Layer)Nickel (1.5 - 4 μm Ni)
Material data - housing
Color (Housing)Green (6021)
Insulating materialPBT
Insulating material groupIIIa
CTI according to IEC 60112225
Flammability class according to UL 94V0
Dimensions
Dimension Schemezzyynvpzer.jpg
Step3.5 mm
Width [w]59.5 mm
Height [h]14.3 mm
Length [l]11.6 mm
Overall Height10.8 mm
Weld Pin Length [P]3.5 mm
Temple Dimensions0.8 x 0.8 mm
Printed circuit board design
Spacing between rods2.50 mm
Hole diameter1.2 mm
Mechanical testing
Eye Exam
Test SpecificationDIN EN 60512-1-1:2003-01
ResultApproved Test
Dimensional Examination
Test SpecificationDIN EN 60512-1-2:2003-01
ResultApproved Test
Resistance of the signs
Test SpecificationDIN EN 60068-2-70:1996-07
ResultApproved Test
Polarization & Coding
Test SpecificationDIN EN 60512-13-5:2006-11
ResultApproved Test
Used contact holder
Test SpecificationDIN EN 60512-15-1:2009-03
Contact Holder Used
Requirement >20 N		Approved Test
Forces when plugging in and unplugging
ResultApproved Test
Number of cycles25
Plug-in force approx.3 N
Power when unplugging by pole approx.2 N
Electrical Testing
Thermal Test Test Group C
Test SpecificationDIN EN 60512-5-1:2003-01
Number of poles tested20
Creepage Lines & Air Isolation Distances
Test SpecificationDIN EN 60664-1 (VDE 0110-1):2008-01
Insulating material groupIIIa
Resistance to leakage currents (DIN EN 60112 (VDE 0303-11))CTI 225
Sizing Insulation Voltage (III/3)160 V
Nominal transient voltage (III/3)2.5 kV
minimum value of air insulation distance - non-homogeneous field (III/3)1.5 mm
Minimum creepage line value (III/3)2.5 mm
Sizing Insulation Voltage (III/2)160 V
Nominal transient voltage (III/2)2.5 kV
Minimum Value of Air Insulation Distance - Non-Homogeneous Field (III/2)1.5 mm
Minimum creepage line value (III/2)1.6 mm
Sizing Insulation Voltage (II/2)250 V
Nominal transient voltage (II/2)2.5 kV
Minimum Value of Air Insulation Distance - Non-Homogeneous Field (II/2)1.5 mm
Minimum creepage line value (II/2)2.5 mm
Environmental and life-life conditions
Vibration test
Test SpecificationDIN EN 60068-2-6 (VDE 0468-2-6):2008-10
frequency10 - 150 - 10 Hz
Sweep speed1 octave/min
Amplitude0.35 mm (10 Hz ... 60.1 Hz)
Acceleration5g (60.1 Hz ... 150 Hz)
Test duration per axis2.5 h
Test DirectionsX, Y, and Z axes
Durability Test
Test SpecificationDIN EN 60512-9-1 (VDE 0687-512-9-1):2010-12
Bearable shock voltage at sea level2.95 kV
Contact Resistance R13 mΩ
Contact Resistance R23.5 mΩ
Plug Cycles25
Climate Essay
Test SpecificationDIN EN ISO 6988:1997-03
Corrosion fatigue0.2 dm3UNDER2in 300 dm3/40 °C/1 cycle
Thermal stress105 °C/168 h
Bearable AC voltage1.39 kV
Environmental conditions
Ambient Temperature (Service)-40 °C ... 100 °C (depending on the rating curve)
Ambient Temperature (Storage/Transport)-40 °C ... 70 °C
Relative humidity of the air (storage/transport)30 % ... 70 %
Ambient Temperature (Mounting)-5 °C ... 100 °C
Packaging Information
Type of packagingBoxed Packaging

ETIM for 1053878 Connectors (EC002637)
Feature Name Feature Value
Connector model (EF007495) Fixed connector
Contact type (EF001587) Pin
Number of poles (EF001391) 30
Number of plug-in contact rows (EF006935) 2
Modular spacing contacts (EF007326) 3.5 mm
Modular spacing connections (EF006827) 3.5 mm
Rated current In (EF008250) 8 A
Rated voltage (EF000228) 160 V
Rated surge voltage (EF002993) 2.5 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Material of contact surface (EF004020) Tin
Type of electric connection (EF003961) Other
Diameter connection pin (EF006823) 1.2 mm
Length pin (EF006825) 3.5 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Green
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of fastening (EF002442) Engage (snap)
Type of banding (EF007011) Carton (for SMD)
