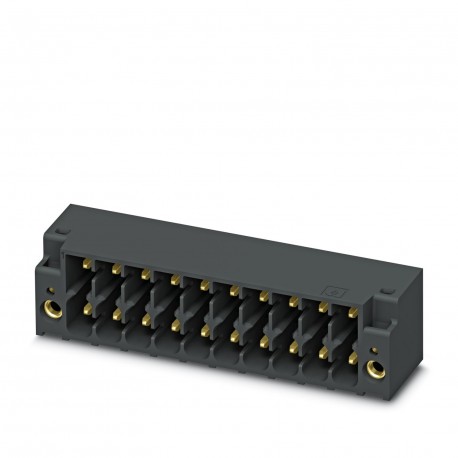

PHOENIX CONTACT DMC 1,5/13-G1F-3,5-LRP26AUTHR DMC 1,5/13-G1F-3,5-LRP26AUTHR 1021245 PHOENIX CONTACT Printed-circuit board connector DMC 1,5/13-G1F-3,5-LRP.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DMC 1,5/13-G1F-3,5-LRP26AUTHR 1021245 PHOENIX CONTACT Printed-circuit board connector DMC 1,5/13-G1F-3,5-LRP..

DMC 1,5/13-G1F-3,5-LRP26AUTHR

1021245

PHOENIX CONTACT

1 Pcs.


Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Printed-circuit board connector - DMC 1,5/13-G1F-3,5-LRP26AUTHR - 1021245

Printed circuit board base case, nominal section: 1.5 mm², color: black, nominal current: 8 A, nominal voltage (III/2): 160 V, contact surface: Gold, contact type: Male, number of potentials: 26, number of rows: 2, number of poles: 13, number of connections: 26, family of articles: DMC 1.5/.. -G1F-THR, pitch: 3.5 mm, mounting: Weld THR, pin arrangement: Linear pin arrangement, pin length [P]: 2.6 mm, number of solder pins per potential: 1, plug-in system: COMBICON DFMC 1.5, Plug-in face orientation: Standard, lock: Snap-in lock, fixing type: Lock & Release air clamping (thread), packaging type: boxed
