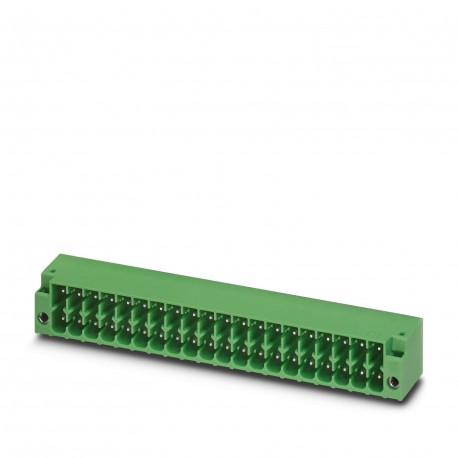

PHOENIX CONTACT DMC 1,5/13-G1F-3,5-LR P35 DMC 1,5/13-G1F-3,5-LR P35 1053876 PHOENIX CONTACT Housing base for printed circuit board, nominal current: 8.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DMC 1,5/13-G1F-3,5-LR P35 1053876 PHOENIX CONTACT Housing base for printed circuit board, nominal current: 8..

DMC 1,5/13-G1F-3,5-LR P35

1053876

PHOENIX CONTACT

50 Pcs.

Housing base for printed circuit board, nominal current: 8 A, voltage and sizing (III/2): 160 V, number of poles: 13, pitch: 3.5 mm, color: green, surface of contact: Tin, assembly: wave Soldering Printed circuit board base housing, nominal section: 1.5 mm², color: green, nominal current: 8 A, nominal voltage (III/2): 160 V, contact surface: Tin, contact type: Male, number of potentials: 26, number of rows: 2, number of poles: 13, number of connections: 26, article family: DMC 1.5/.. -G1F, pitch: 3.5 mm, mounting: Wave welding, pin arrangement: Linear pin arrangement, pin length [P]: 3.5 mm, number of solder pins per potential: 1, plug-in system: COMBICON DFMC 1.5, Plug-in face orientation: Standard, lock: Snap-in lock, fixing type: Lock & Release air clamping (thread), packaging type: boxed PCB base strip, nominal cross-section: 1.5 mm2, colour: green, rated current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact type: pin, number of potentials: 26, number of rows: 2, number of poles: 13, number of terminals: 26, article family: DMC 1,5/.. -G1F, Pitch: 3.5 mm, Mounting: Wave Soldering, Pin Layout: Linear Pinning, Pin Length [P]: 3.5 mm, Number of Solder Pins per Potential: 1, Mating System: COMBICON DFMC 1.5, Mating Face Alignment: Standard, Locking: Lock and Release Latching, Mounting Type: Lock & Release Threaded Flange, Packaging Type: Packed in a Box

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Product TypePCB Floor Strip
Product familyDMC 1.5/.. -G1F
Product LineCOMBICON Connectors S
Number of poles13
Grid dimension3.5 mm
Number of ports26
Number of rows2
Number of potentials26
Pin layoutLinear Pinning
Number of solder pins per potential1
Data maintenance status
Article revision00
Nominal current IN8 A
Rated voltage UN160 V
Contact resistance3 mΩ
Rated voltage (III/3)160 V
Rated Surge Voltage (III/3)2.5 kV
Rated voltage (III/2)160 V
Rated Surge Voltage (III/2)2.5 kV
Rated voltage (II/2)250 V
Rated Surge Voltage (II/2)2.5 kV
Mounting typeWave Soldering
Pin layoutLinear Pinning
Flange
Tightening torque0.2 Nm
Material information - Contact
NoteWEEE/RoHS compliant, whisker-free according to IEC 60068-2-82/JEDEC JESD 201
Material ContactCu alloy
Surface finishElectroplated
Metal Surface Contact Area (Top Layer)Tin (4 - 8 μm Sn)
Metal Surface Contact Area (Interlayer)Nickel (1.5 - 4 μm Ni)
Metal Surface Soldering Area (Top Layer)Tin (4 - 8 μm Sn)
Metal Surface Soldering Area (Interlayer)Nickel (1.5 - 4 μm Ni)
Material specifications - Housing
Color (Housing)Green (6021)
Insulating materialPBT
Insulating material groupIIIa
CTI according to IEC 60112225
Flammability class according to UL 94V0
Dimensional drawing
Grid dimension3.5 mm
Width [w]52.5 mm
Height [h]14.3 mm
Length [l]11.6 mm
Overall height10.8 mm
Solder pin length [P]3.5 mm
Pin Dimensions0.8 x 0.8 mm
PCB Design
Pin spacing2.50 mm
Drill Hole Diameter1.2 mm
Visual inspection
Test SpecificationDIN EN 60512-1-1:2003-01
ResultExam passed
Dimensional inspection
Test SpecificationDIN EN 60512-1-2:2003-01
ResultExam passed
Durability of inscriptions
Test SpecificationDIN EN 60068-2-70:1996-07
ResultExam passed
Polarization and Coding
Test SpecificationDIN EN 60512-13-5:2006-11
ResultExam passed
Contact holder in use
Test SpecificationDIN EN 60512-15-1:2009-03
Contact holder in use
Requirement >20 N		Exam passed
Mating and pulling forces
ResultExam passed
Number of cycles25
Insertion force per pole approx.3 N
Pulling force per pole approx.2 N
Thermal Testing Test Group C
Test SpecificationDIN EN 60512-5-1:2003-01
Tested number of poles20
Clearance and creepage distances
Test SpecificationDIN EN 60664-1 (VDE 0110-1):2008-01
Insulating material groupIIIa
Tracking resistance (DIN EN 60112 (VDE 0303-11))CTI 225
Rated insulation voltage (III/3)160 V
Rated Surge Voltage (III/3)2.5 kV
Minimum air distance value - inhomogeneous field (III/3)1.5 mm
Minimum value of the creepage distance (III/3)2.5 mm
Rated insulation voltage (III/2)160 V
Rated Surge Voltage (III/2)2.5 kV
Minimum value of the air distance - inhomogeneous field (III/2)1.5 mm
Minimum value of the creepage distance (III/2)1.6 mm
Rated insulation voltage (II/2)250 V
Rated Surge Voltage (II/2)2.5 kV
Minimum value of the clearance - inhomogeneous field (II/2)1.5 mm
Minimum value of the creepage distance (II/2)2.5 mm
Vibration testing
Test SpecificationDIN EN 60068-2-6 (VDE 0468-2-6):2008-10
Frequency10 - 150 - 10 Hz
Sweep Speed1 octave/min
Amplitude0.35 mm (10 Hz ... 60.1 Hz)
Acceleration5g (60.1 Hz ... 150 Hz)
Test duration per axis2.5 h
Test DirectionsX, Y and Z axis
Durability test
Test SpecificationDIN EN 60512-9-1 (VDE 0687-512-9-1):2010-12
Standing Shock Stress at Sea Level2.95 kV
Contact resistance R13 mΩ
Contact resistance R23.5 mΩ
Mating cycles25
Climatic testing
Test SpecificationDIN EN ISO 6988:1997-03
Corrosion stress0.2 dm3SO2to 300 DM3/40 °C/1 cycle
Heat stress105 °C/168 h
Standing AC voltage1.39 kV
Environmental conditions
Ambient temperature (operating)-40 °C ... 100 °C (depending on the derating curve)
Ambient temperature (storage/transport)-40 °C ... 70 °C
Relative humidity (storage/transport)30 % ... 70 %
Ambient temperature (mounting)-5 °C ... 100 °C
Packaging typepacked in carton

ETIM for 1053876 Connectors (EC002637)
Feature Name Feature Value
Connector model (EF007495) Fixed connector
Contact type (EF001587) Pin
Number of poles (EF001391) 26
Number of plug-in contact rows (EF006935) 2
Modular spacing contacts (EF007326) 3.5 mm
Modular spacing connections (EF006827) 3.5 mm
Rated current In (EF008250) 8 A
Rated voltage (EF000228) 160 V
Rated surge voltage (EF002993) 2.5 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Material of contact surface (EF004020) Tin
Type of electric connection (EF003961) Other
Diameter connection pin (EF006823) 1.2 mm
Length pin (EF006825) 3.5 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Green
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of fastening (EF002442) Engage (snap)
Type of banding (EF007011) Carton (for SMD)
