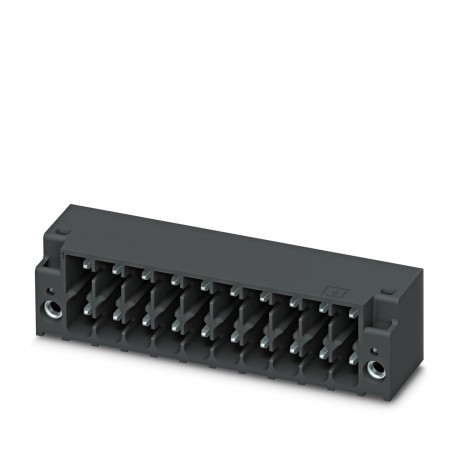

DMC 1,5/11-G1F-3,5-LR P26THR 1713854 PHOENIX CONTACT Printed-circuit board connector

DMC 1,5/11-G1F-3,5-LR P26THR

1713854

PHOENIX CONTACT

50 Pcs.

Printed-circuit board connector Printed circuit board base housing, nominal section: 1.5 mm², color: black, nominal current: 8 A, nominal voltage (III/2): 160 V, contact surface: Tin, contact type: Male, number of potentials: 22, number of rows: 2, number of poles: 11, number of connections: 22, family of articles: DMC 1.5/.. -G1F-THR, pitch: 3.5 mm, mounting: Weld THR, pin arrangement: Linear pin arrangement, pin length [P]: 2.6 mm, number of solder pins per potential: 1, plug-in system: COMBICON DFMC 1.5, Plug-in face orientation: Standard, lock: Snap-in lock, fixing type: Lock & Release air clamping (thread), packaging type: boxed PCB base socket, nominal cross-section: 1.5 mm2, colour: black, rated current: 8 A, dimensioning voltage (III/2): 160 V, contact surface: Sn, contact connection type: plug, number of potentials: 22, number of rows: 2, number of poles: 11, number of connections: 22, product series: DMC 1.5/.. -G1F-THR, pitch: 3.5 mm, mounting: TTHR / wave soldering, pin layout: Linear pinning, pin length [P]: 2.6 mm, number of solder pins per potential: 1, plug system: COMBICON DFMC 1.5, Insertion pin orientation: Standard, locking: Snap locking, fastening type: Lock & Release threaded flange, package type: packed in carton

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1713854
Packing unit50 pc
Minimum order quantity50 pc
NoteMade to Order (non-returnable)
GTIN4055626339139
Weight per Piece (excluding packing)6.280 g
Custom tariff number85366930
Country of originDE (Germany)

Dimensions

Length [ l ]11.6 mm
Width45.5 mm
Pitch3.5 mm
Dimension a35 mm
Width [ w ]45.5 mm
Height [ h ]12.8 mm
Height10.8 mm
Length of the solder pin2.6 mm
Pin dimensions0.8 x 0.8 mm
Pin spacing2.50 mm
Length11.6 mm

General

Range of articlesDMC 1,5/..-G1F-THR
Insulating material groupIIIa
Rated voltage (III/3)160 V
Rated voltage (III/2)160 V
Nominal current IN8 A
Flammability rating according to UL 94V0
Colorblack
Number of positions11

Standards and Regulations

Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
