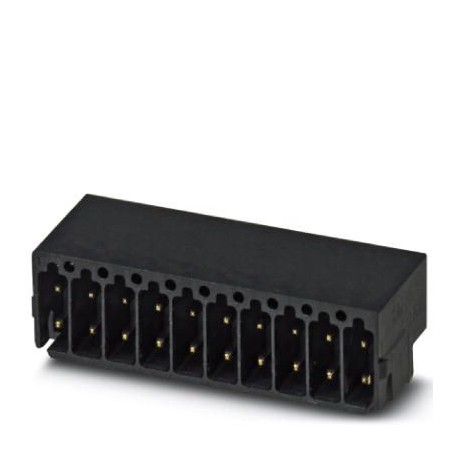

PHOENIX CONTACT DMC 0,5/15-G1-2,54 P20THR R56 DMC 0,5/15-G1-2,54 P20THR R56 1844853 PHOENIX CONTACT Printed-circuit board connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DMC 0,5/15-G1-2,54 P20THR R56 1844853 PHOENIX CONTACT Printed-circuit board connector

DMC 0,5/15-G1-2,54 P20THR R56

1844853

PHOENIX CONTACT

300 Pcs.

Printed-circuit board connector Printed circuit board base housing, nominal section: 0.5 mm², color: black, nominal current: 6 A, nominal voltage (III/2): 160 V, contact surface: Gold, contact type: Male, number of potentials: 30, number of rows: 2, number of poles: 15, number of connections: 30, family of articles: DMC 0.5/.. -G1-THR, pitch: 2.54 mm, mounting: Solder THR, pin arrangement: Linear pin arrangement, pin length [P]: 2 mm, number of solder pins per potential: 1, plug-in system: COMBICON DFMC 0.5, Plug-in face orientation: Standard, lock: without, fixing type: without, packaging type: 56 mm wide strap

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1844853
Packing unit300 pc
Minimum order quantity300 pc
NoteMade to Order (non-returnable)
GTIN4046356964227
Weight per Piece (excluding packing)2.220 g
Custom tariff number85366930
Country of originDE (Germany)

Dimensions

Length [ l ]9.64 mm
Width39.4 mm
Pitch2.54 mm
Dimension a35.56 mm
Width [ w ]39.4 mm
Height [ h ]9.39 mm
Height7.39 mm
Length of the solder pin2 mm
Pin dimensions0.64 x 0.64 mm
Pin spacing2.54 mm
Length9.64 mm

General

Range of articlesDMC 0,5/..-G1-THR
Insulating material groupIIIa
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)32 V
Rated voltage (III/2)160 V
Rated voltage (II/2)160 V
Connection in acc. with standardEN-VDE
Nominal current IN6 A
Insulating materialLCP
Flammability rating according to UL 94V0
Colorblack
Number of positions15

Standards and Regulations

Connection in acc. with standardEN-VDE
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1844853 Connectors (EC002637)
Feature Name Feature Value
Connector model (EF007495) Fixed connector
Contact type (EF001587) Pin
Number of poles (EF001391) 30
Number of plug-in contact rows (EF006935) 2
Modular spacing contacts (EF007326) 2.54 mm
Modular spacing connections (EF006827) 2.54 mm
Rated current In (EF008250) 6 A
Rated voltage (EF000228) 160 V
Rated surge voltage (EF002993) 2.5 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Material of contact surface (EF004020) Gold
Type of electric connection (EF003961) Other
Diameter connection pin (EF006823) 1.2 mm
Length pin (EF006825) 2 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Black
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of fastening (EF002442) Other
Type of banding (EF007011) Other

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
