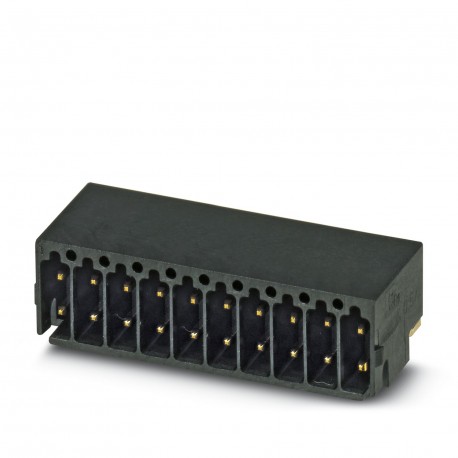

PHOENIX CONTACT DMC 0,5/11-G1-2,54 SMD R56 DMC 0,5/11-G1-2,54 SMD R56 1845111 PHOENIX CONTACT Printed-circuit board connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DMC 0,5/11-G1-2,54 SMD R56 1845111 PHOENIX CONTACT Printed-circuit board connector

DMC 0,5/11-G1-2,54 SMD R56

1845111

PHOENIX CONTACT

300 Pcs.

Printed-circuit board connector Printed circuit board base housing, nominal section: 0.5 mm², color: black, nominal current: 6 A, nominal voltage (III/2): 160 V, contact surface: Gold, contact type: Male, number of potentials: 22, number of rows: 2, number of poles: 11, number of connections: 22, family of articles: DMC 0.5/.. -G1-SMD, pitch: 2.54 mm, mounting: SMD soldering, pin arrangement: Linear pin arrangement, pin length [P]: 2 mm, number of solder pins per potential: 1, plug-in system: COMBICON DFMC 0.5, Plug-in face orientation: Standard, locking: without, fixing type: without, packaging type: 56 mm wide strap, Sample quantities available under SAMPLE DMC... PCB headers, nominal cross section: 0.5 mm2, color: black, nominal current: 6 A, rated voltage (III/2): 160 V, contact surface: Au, contact connection type: Pin, number of potentials: 22, number of rows: 2, number of positions: 11, number of connections: 22, product range: DMC 0,5/..-G1-SMD, pitch: 2.54 mm, mounting: SMD soldering, pin layout: Linear pinning, solder pin [P]: 2 mm, number of solder pins per potential: 1, plug-in system: COMBICON DFMC 0,5, Pin connector pattern alignment: Standard, locking: without, mounting: without, type of packaging: 56 mm wide tape, Sample values available under SAMPLE DMC...

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typePCB headers
Product familyDMC 0,5/..-G1-SMD
Product lineCOMBICON Connectors XS
Number of positions11
Pitch2.54 mm
Number of connections22
Number of rows2
Number of potentials22
Mounting flangewithout
Pin layoutLinear pinning
Solder pins per potential1
Data management status
Article revision04
Electrical properties
Nominal current IN6 A
Nominal voltage UN160 V
Contact resistance2.8 mΩ
Rated voltage (III/3)32 V
Rated surge voltage (III/3)2.5 kV
Rated voltage (III/2)160 V
Rated surge voltage (III/2)2.5 kV
Rated voltage (II/2)160 V
Rated surge voltage (II/2)2.5 kV
Mounting
Mounting typeSMD soldering
Pin layoutLinear pinning
Processing notes
ProcessReflow soldering
Moisture Sensitive LevelMSL 1
Classification temperature Tc260 °C
Solder cycles in the reflow3
Material specifications
Material data - contact
NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicsCompletely gold-plated
Metal surface contact area (top layer)Gold (0.25 Au)
Metal surface contact area (middle layer)Nickel (2 - 4 µm Ni)
Metal surface soldering area (top layer)Gold (0.25 Au)
Metal surface soldering area (middle layer)Nickel (2 - 4 µm Ni)
Material data - housing
Color (Housing)black (9005)
Insulating materialLCP
Insulating material groupIIIa
CTI according to IEC 60112175
Flammability rating according to UL 94V0
Dimensions
Dimensional drawingzzyynvpzer.jpg
Pitch2.54 mm
Width [w]28.44 mm
Height [h]11.39 mm
Length [l]12.26 mm
Installed height9.39 mm
Solder pin length [P]2 mm
Pin dimensions0.64 x 0.64 mm
PCB design
Pad geometry1.2 x 2.1 mm
1.2 x 3.8 mm
Pin spacing2.54 mm
Hole diameter1.2 mm
Mechanical tests
Visual inspection
SpecificationIEC 60512-1-1:2002-02
ResultTest passed
Dimension check
SpecificationIEC 60512-1-2:2002-02
ResultTest passed
Resistance of inscriptions
SpecificationIEC 60068-2-70:1995-12
ResultTest passed
Polarization and coding
SpecificationIEC 60512-13-5:2006-02
ResultTest passed
Contact holder in insert
SpecificationIEC 60512-15-1:2008-05
Contact holder in insert
Requirements >20 N		Test passed
Insertion and withdrawal forces
ResultTest passed
No. of cycles100
Insertion strength per pos. approx.2 N
Withdraw strength per pos. approx.1 N
Electrical tests
Thermal test Test group C
SpecificationIEC 60512-5-1:2002-02
Tested number of positions16
Insulation resistance
SpecificationIEC 60512-3-1:2002-02
Insulation resistance, neighboring positions> 5 MΩ
Air clearances and creepage distances
SpecificationIEC 60664-1:2007-04
Insulating material groupIIIa
Comparative tracking index (IEC 60112)CTI 175
Rated insulation voltage (III/3)32 V
Rated surge voltage (III/3)2.5 kV
minimum clearance value - non-homogenous field (III/3)1.5 mm
minimum creepage distance (III/3)1.3 mm
Rated insulation voltage (III/2)160 V
Rated surge voltage (III/2)2.5 kV
minimum clearance value - non-homogenous field (III/2)1.5 mm
minimum creepage distance (III/2)1.6 mm
Rated insulation voltage (II/2)160 V
Rated surge voltage (II/2)2.5 kV
minimum clearance value - non-homogenous field (II/2)1.5 mm
minimum creepage distance (II/2)1.6 mm
Environmental and real-life conditions
Vibration test
SpecificationIEC 60068-2-6:2007-12
Frequency10 - 500 - 10 Hz
Sweep speed1 octave/min
Amplitude0.35 mm (10 Hz ... 60.1 Hz)
Acceleration5g (60.1 Hz ... 500 Hz)
Test duration per axis2 h
Test directionsX-, Y- and Z-axis
Durability test
SpecificationIEC 60512-9-1:2010-03
Impulse withstand voltage at sea level2.95 kV
Contact resistance R12.8 mΩ
Contact resistance R22.9 mΩ
Insertion/withdrawal cycles100
Insulation resistance, neighboring positions> 5 MΩ
Climatic test
SpecificationDIN 50018:2013-05
Corrosive stress1.0 dm3SO2on 300 dm3/40 °C/3 cycles
Thermal stress105 °C/168 h
Power-frequency withstand voltage1.39 kV
Ambient conditions
Ambient temperature (operation)-40 °C ... 105 °C (dependent on the derating curve)
Ambient temperature (storage/transport)-40 °C ... 70 °C
Relative humidity (storage/transport)30 % ... 70 %
Ambient temperature (assembly)-5 °C ... 100 °C
Packaging specifications
Dimensional drawingckrmjeflhr.jpg
Type of packaging56 mm wide tape
[W] tape width56 mm
[W2] coil overall dimension62.4 mm
[A] coil diameter330 mm
Outer packaging typeTransparent-Bag
ESD level(D) electrostatically conductive
SpecificationDIN EN 61340-5-1 (VDE 0300-5-1): 2008-07

ETIM for 1845111 Connectors (EC002637)
Feature Name Feature Value
Connector model (EF007495) Fixed connector
Contact type (EF001587) Pin
Number of poles (EF001391) 22
Number of plug-in contact rows (EF006935) 2
Modular spacing contacts (EF007326) 2.54 mm
Modular spacing connections (EF006827) 2.54 mm
Rated current In (EF008250) 6 A
Rated voltage (EF000228) 160 V
Rated surge voltage (EF002993) 2.5 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Material of contact surface (EF004020) Gold
Type of electric connection (EF003961) Other
Diameter connection pin (EF006823) 1.2 mm
Length pin (EF006825) 2 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Black
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of fastening (EF002442) Other
Type of banding (EF007011) Other
