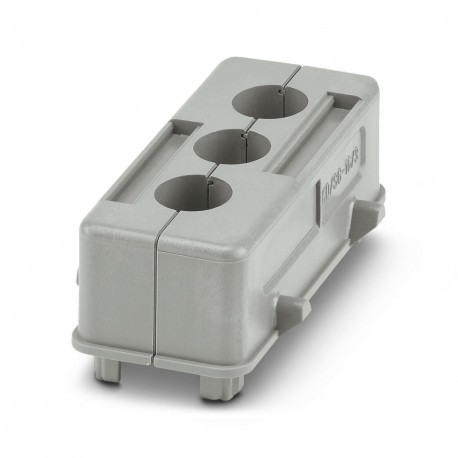

View larger
Images are for illustrative purposes only. Please refer to data sheet for details
HC-KD/SG 16/ 3 1644012 PHOENIX CONTACT Cable feed-through
HC-KD/SG 16/ 3
1644012
PHOENIX CONTACT
1 Pcs.
Cable feed-through
Divisible cable feed-through for HC-B16-... panel mounting base; for three conductors
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Notes
| General | For HEAVYCON panel mounting base of type B16; for HC-KDT../ HC-KDG-B |
Product properties
| Product type | Cable feed-through |
| Type | B16 |
Material specifications
| Material | PC |
| Flammability rating according to UL 94 | V0 |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP54 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
