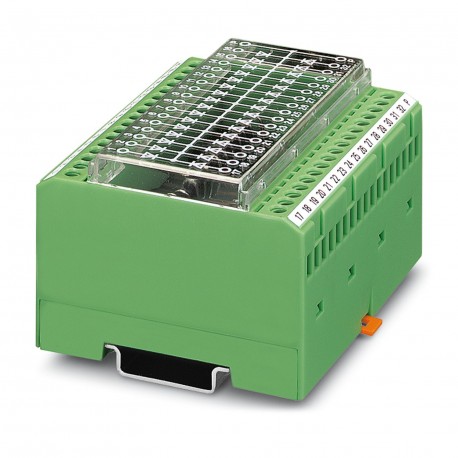

EMG 90-DIO 32P 2954918 PHOENIX CONTACT Diode block
EMG 90-DIO 32P
2954918
PHOENIX CONTACT
5 Pcs.
Diode block
Diode module, for expansion with 32 diodes 1N 4007, common cathode
Diode module, for extension with 32 1N 4007 diodes, common cathode
Automation > Surge protection module
Industrial Relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Diode module |
| Data management status | |
| Article revision | 10 |
| Insulation characteristics | |
| Pollution degree | 2 |
Input data
| Diode | |
| Description of the input | 32 diodes, common cathodes |
| Diode type | 1 N 4007 |
| Max. operating voltage Umax | 250 V AC |
| Peak reverse voltage per diode | 1300 V |
| Reverse current per diode | 5 µA |
| Conducting state voltage per diode | approx. 0.8 V |
| Conducting state current per diode | 0.7 A (with single load) |
| 0.2 A (with simultaneous loads) | |
Connection data
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Dimensions
| Width | 90 mm |
| Height | 75 mm |
| Depth | 55 mm |
Material specifications
| Color | green (RAL 6021) |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -20 °C ... 50 °C |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
Approvals
| CE | |
| Certificate | CE-compliant |
| Note | and EN 61326 |
Standards and regulations
| Standards/regulations | DIN EN 50178 |
Mounting
| Mounting type | DIN rail mounting |
| Assembly note | in rows with zero spacing |
| Mounting position | any |
