View larger
Images are for illustrative purposes only. Please refer to data sheet for details

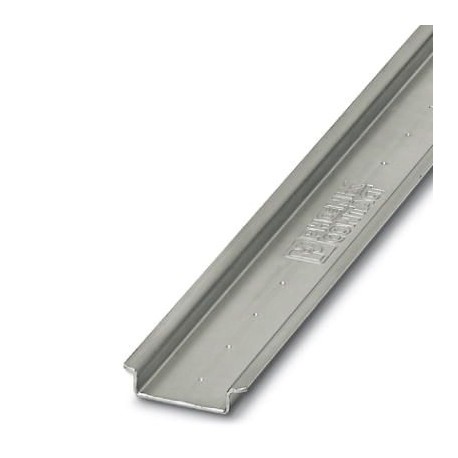

NS 35/ 7,5 UNPERF 2000MM 0801681 PHOENIX CONTACT DIN rail, unperforated
NS 35/ 7,5 UNPERF 2000MM
0801681
PHOENIX CONTACT
50 Pcs.
DIN rail, unperforated
Symmetrical rail without drilling, according to EN 60715, material:Steel, galvanized, thick layer passivation, Standard profile, color:silver, Packaging variant with 25 units (50 m)
Automation > Mounting rail
CABINET add-on
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 0801681 |
|---|---|
| Packing unit | 5 pc |
| Minimum order quantity | 5 pc |
| Catalog page | Page 568 (C-3-2017) |
| GTIN | 4017918006648 |
| Weight per Piece (excluding packing) | 690.000 g |
| Custom tariff number | 72166190 |
| Country of origin | DE (Germany) |
Dimensions
| Height | 7.5 mm |
|---|---|
| Length | 2000 mm |
| Width | 35 mm |
| Hole width | 0.00 mm |
| Hole height | 0.00 mm |
| Drill hole spacing | 0.00 mm |
