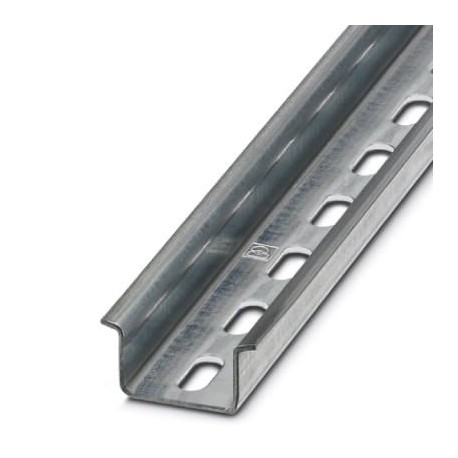

NS 35/15 ZN PERF 2000MM 1206599 PHOENIX CONTACT DIN rail perforated
NS 35/15 ZN PERF 2000MM
1206599
PHOENIX CONTACT
50 Pcs.
DIN rail perforated
Symmetrical perforated rail, similar EN 60715, material:Steel, galvanized, Standard profile, color:silver, Packaging variant with 25 units (50 m)
Automation > Mounting rail
CABINET add-on
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1206599 |
|---|---|
| Packing unit | 5 pc |
| Minimum order quantity | 5 pc |
| Catalog page | Page 577 (C-3-2017) |
| GTIN | 4017918173050 |
| Weight per Piece (excluding packing) | 1,320.000 g |
| Custom tariff number | 72166190 |
| Country of origin | DE (Germany) |
Dimensions
| Height | 15 mm |
|---|---|
| Length | 2000 mm |
| Width | 35 mm |
| Hole width | 15.00 mm |
| Hole height | 6.20 mm |
| Drill hole spacing | 25.00 mm |
Classifications
eCl@ss 4.027110804eCl@ss 4.127110804eCl@ss 5.027141143eCl@ss 5.127141100eCl@ss 6.027400600eCl@ss 7.027400602eCl@ss 8.027400602eCl@ss 9.027400602
| Feature Name | Feature Value |
|---|---|
| Material (EF002169) | Steel |
| Surface protection (EF000139) | Other |
| Punch shape (EF001457) | Long-slot |
| Drill hole distance centrically (EF002677) | 25 mm |
| Material thickness (EF000386) | 1.5 mm |
| Length (EF001438) | 2000 mm |
| Height (EF000040) | 15 mm |
