View larger
Images are for illustrative purposes only. Please refer to data sheet for details

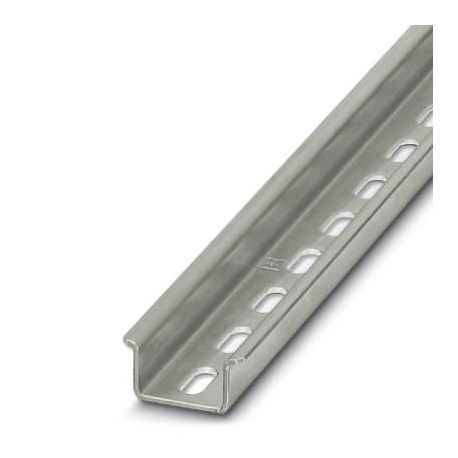

NS 35/15 PERF 1155MM 1207695 PHOENIX CONTACT DIN rail perforated
NS 35/15 PERF 1155MM
1207695
PHOENIX CONTACT
10 Pcs.
DIN rail perforated
Symmetrical perforated rail, similar EN 60715, material: Steel, galvanized, thick layer passivated, Standard profile, color: silver
Automation > Mounting rail
CABINET add-on
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1207695 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Catalog page | Page 576 (C-3-2017) |
| GTIN | 4017918936020 |
| Weight per Piece (excluding packing) | 710.000 g |
| Custom tariff number | 72166190 |
| Country of origin | DE (Germany) |
Dimensions
| Height | 15 mm |
|---|---|
| Length | 1155 mm |
| Width | 35 mm |
| Hole width | 15.00 mm |
| Hole height | 6.20 mm |
| Drill hole spacing | 25.00 mm |
Classifications
eCl@ss 4.023150301eCl@ss 4.123150301eCl@ss 5.027141143eCl@ss 5.127141100eCl@ss 6.027400600eCl@ss 7.027400602eCl@ss 8.027400602eCl@ss 9.027400602
| Feature Name | Feature Value |
|---|---|
| Material (EF002169) | Steel |
| Surface protection (EF000139) | Other |
| Punch shape (EF001457) | Long-slot |
| Drill hole distance centrically (EF002677) | 25 mm |
| Material thickness (EF000386) | 1.5 mm |
| Length (EF001438) | 1155 mm |
| Height (EF000040) | 15 mm |
