View larger
Images are for illustrative purposes only. Please refer to data sheet for details

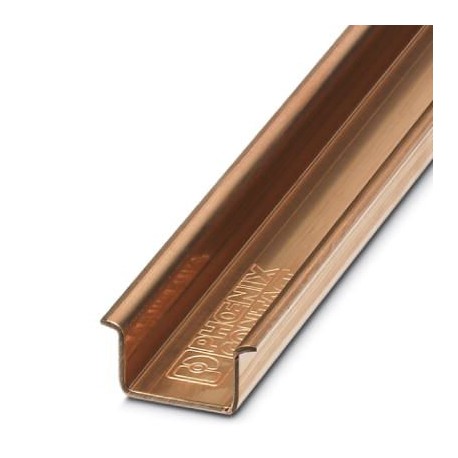

NS 35/15 CU UNPERF 2000MM-VPE 10 1201895 PHOENIX CONTACT DIN rail, unperforated
NS 35/15 CU UNPERF 2000MM-VPE 10
1201895
PHOENIX CONTACT
20 Pcs.
DIN rail, unperforated
Symmetrical rail without drilling, similar EN 60715, material: Copper, uncoated, Standard profile, color: copper, Packaging variant with 10 units (20 m)
Automation > Mounting rail
CABINET add-on
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1201895 |
|---|---|
| Packing unit | 5 pc |
| Minimum order quantity | 5 pc |
| Catalog page | Page 575 (C-3-2017) |
| GTIN | 4017918017583 |
| Weight per Piece (excluding packing) | 1,510.000 g |
| Custom tariff number | 74072190 |
| Country of origin | DE (Germany) |
Dimensions
| Height | 15 mm |
|---|---|
| Length | 2000 mm |
| Width | 35 mm |
| Hole width | 0.00 mm |
| Hole height | 0.00 mm |
| Drill hole spacing | 0.00 mm |
General
| Material | Copper |
|---|---|
| Coating | uncoated |
| Color | copper-colored |
| Max. permissible thermal nominal current for PEN function | 232.00 A |
Classifications
eCl@ss 4.027110804eCl@ss 4.127110804eCl@ss 5.027141143eCl@ss 5.127141100eCl@ss 6.027400600eCl@ss 7.027400602eCl@ss 8.027400602eCl@ss 9.027400602
| Feature Name | Feature Value |
|---|---|
| Material (EF002169) | Copper |
| Surface protection (EF000139) | Untreated |
| Punch shape (EF001457) | None |
| Material thickness (EF000386) | 1.5 mm |
| Length (EF001438) | 2000 mm |
| Height (EF000040) | 15 mm |
