View larger
Images are for illustrative purposes only. Please refer to data sheet for details

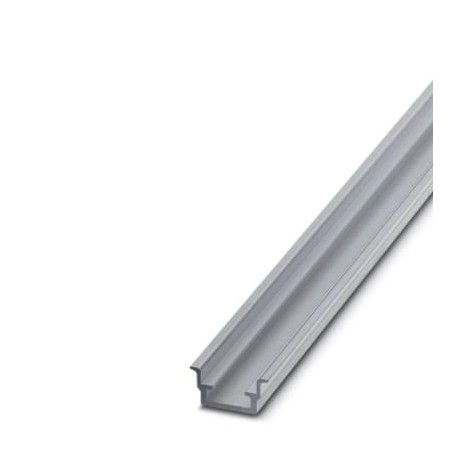

NS 35/15 AL UNPERF 2000MM 1201756 PHOENIX CONTACT DIN rail, unperforated
NS 35/15 AL UNPERF 2000MM
1201756
PHOENIX CONTACT
10 Pcs.
DIN rail, unperforated
Symmetrical rail without drilling, similar EN 60715, material:Aluminum, uncoated, Standard profile, color:silver
Automation > Mounting rail
CABINET add-on
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1201756 |
|---|---|
| Packing unit | 5 pc |
| Minimum order quantity | 5 pc |
| Catalog page | Page 580 (C-3-2017) |
| GTIN | 4017918017477 |
| Weight per Piece (excluding packing) | 680.000 g |
| Custom tariff number | 76042990 |
| Country of origin | AT (Austria) |
Dimensions
| Height | 15 mm |
|---|---|
| Length | 2000 mm |
| Width | 35 mm |
| Hole width | 0.00 mm |
| Hole height | 0.00 mm |
| Drill hole spacing | 0.00 mm |
General
| Material | Aluminum |
|---|---|
| Coating | uncoated |
| Color | silver |
| Max. permissible thermal nominal current for PEN function | 192.00 A |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
