View larger
Images are for illustrative purposes only. Please refer to data sheet for details

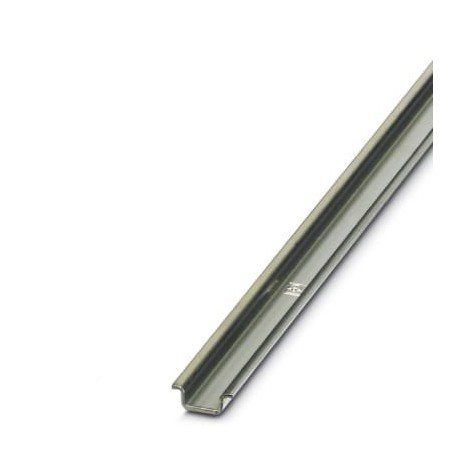

NS 15 UNPERF 2000MM VPE 10 1401695 PHOENIX CONTACT DIN rail, unperforated
NS 15 UNPERF 2000MM VPE 10
1401695
PHOENIX CONTACT
20 Pcs.
DIN rail, unperforated
Symmetrical rail without drilling, according to EN 60715, material: Steel, galvanized, thick layer passivation, Standard profile, color: silver, Packaging variant with 10 units (20 m)
Automation > Mounting rail
CABINET add-on
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1401695 |
|---|---|
| Packing unit | 5 pc |
| Minimum order quantity | 5 pc |
| Catalog page | Page 566 (C-3-2017) |
| GTIN | 4017918020507 |
| Weight per Piece (excluding packing) | 330.000 g |
| Custom tariff number | 72166190 |
| Country of origin | DE (Germany) |
Dimensions
| Height | 5 mm |
|---|---|
| Length | 2000 mm |
| Width | 15 mm |
| Hole width | 0.00 mm |
| Hole height | 0.00 mm |
| Drill hole spacing | 0.00 mm |
Classifications
eCl@ss 4.027110804eCl@ss 4.127110804eCl@ss 5.027141143eCl@ss 5.127141100eCl@ss 6.027400600eCl@ss 7.027400602eCl@ss 8.027400602eCl@ss 9.027400602
| Feature Name | Feature Value |
|---|---|
| Material (EF002169) | Steel |
| Surface protection (EF000139) | Other |
| Punch shape (EF001457) | None |
| Material thickness (EF000386) | 1 mm |
| Length (EF001438) | 2000 mm |
| Height (EF000040) | 5 mm |
