View larger
Images are for illustrative purposes only. Please refer to data sheet for details

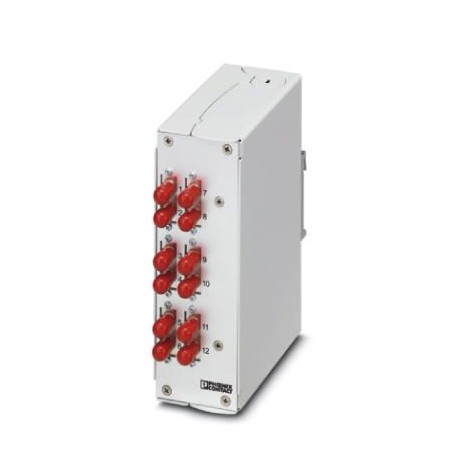

FOC-PP-SB-ST:6 1411903 PHOENIX CONTACT Splice box
FOC-PP-SB-ST:6
1411903
PHOENIX CONTACT
1 Pcs.
Splice box
Automation > Network hub
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1411903 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 385 (C-2-2017) |
| GTIN | 4046356945172 |
| Weight per Piece (excluding packing) | 838.400 g |
| Custom tariff number | 85367000 |
| Country of origin | DE (Germany) |
Mechanical characteristics
| Number of slots | 12 |
|---|---|
| Connection profile | ST / BFOC (ST®) connectors |
| Fiber type | GOF |
| Ferrule diameter | 2.50 mm |
| Insertion/withdrawal cycles | > 500 |
| Connection method | ST |
| Type of contact | Fiber optics connectors |
| Cable outlet | above and below |
| Type of cable | For all common cable types |
| Color | light grey RAL 7035 |
| Mounting type | DIN rail mounting |
| Degree of protection | IP20 |
| Type | Rail-mountable module |
| No. of cable outlets | 2 |
| Type of note | Notes on operation |
| Note | Pigtails and splice holders must also be mounted, cable gland not included |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 85 °C (IEC 61300-2-22) |
|---|---|
| Ambient temperature (assembly) | -5 °C ... 55 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Degree of protection | IP20 |
Material data
| Flammability rating according to UL 94 | V0 |
|---|---|
| Housing material | Sheet steel |
| Housing surface material | Powder-coated, gray |
| Housing width | 52 mm |
| Depth | 110 mm |
| Height | 150 mm |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
