View larger
Images are for illustrative purposes only. Please refer to data sheet for details

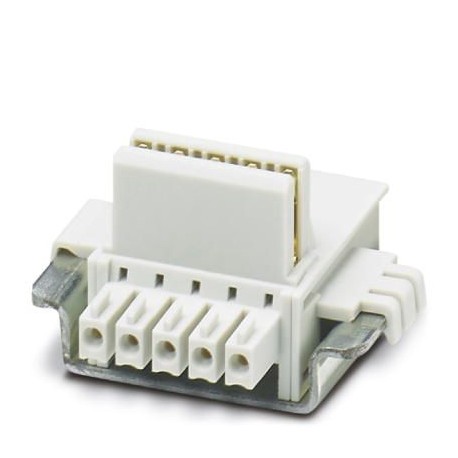

ME 22,5 TBUS 1,5/4P1S KMGY 2201732 PHOENIX CONTACT DIN rail bus connectors
ME 22,5 TBUS 1,5/4P1S KMGY
2201732
PHOENIX CONTACT
50 Pcs.
DIN rail bus connectors
Bus connectors for rail, color: bright gray, rated current: 8 A, 8 A (parallel contacts) (standard contacts), rated voltage (III/2): 50 V, number of poles: 5, pitch: 3.81 mm, mounting: Rail mounting, lock: without, fixing type: without, Articles with gold contacts, bus connectors for connection with electronics boxes, 4 parallel contacts/1 standard contact
Connectors > Printed circuit board connector
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2201732 |
|---|---|
| Packing unit | 50 pc |
| Catalog page | Page 39 (NTK-2014) |
| GTIN | 4046356905220 |
| Weight per Piece (excluding packing) | 5.320 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
General
| Rated surge voltage (II/2) | 1.5 kV |
|---|---|
| Rated voltage (III/2) | 100 V |
| Insulating material | PA |
| Flammability rating according to UL 94 | V0 |
| Color | light gray |
| Number of positions | 5 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027180401eCl@ss 4.127180401eCl@ss 5.027180506eCl@ss 5.127180500eCl@ss 6.027180800eCl@ss 7.027182702eCl@ss 8.027440309eCl@ss 9.027440309
| Feature Name | Feature Value |
|---|---|
| Modular spacing contacts (EF007326) | 3.81 mm |
| Modular spacing connections (EF006827) | 3.81 mm |
| Rated current In (EF008250) | 8 A |
| Rated voltage (EF000228) | 50 V |
| Rated surge voltage (EF002993) | 0.8 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Type of electric connection (EF003961) | Other |
| Suitable for PCB thickness (EF007253) | 1.8 mm |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Grey |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of fastening (EF002442) | Other |
