View larger
Images are for illustrative purposes only. Please refer to data sheet for details

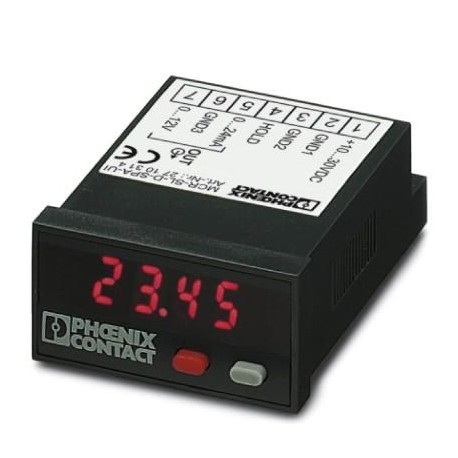

MCR-SL-D-SPA-UI 2710314 PHOENIX CONTACT Setpoint adjuster
MCR-SL-D-SPA-UI
2710314
PHOENIX CONTACT
1 Pcs.
Setpoint adjuster
Digital nominal value generator with manual and automatic ramp for predetermination of current and voltage signals, 4-digit display
Automation > Accessories/spare parts for HVAC sensors
INTERFACE Components (IF)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2710314 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 186 (C-5-2017) |
| GTIN | 4046356091190 |
| Weight per Piece (excluding packing) | 100.000 g |
| Custom tariff number | 90291000 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 65 °C |
|---|---|
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Degree of protection | IP65 from the front |
Output data
| Voltage output signal | 0 V ... 12 V |
|---|---|
| Current output signal | 0 mA ... 24 mA |
| Load/output load voltage output | ≥ 2 kΩ |
| Load/output load current output | ≤ 500 Ω (up to 20 mA) |
| ≤ 400 Ω (> 20 mA) | |
| Ripple | ≤ 10 mVPP |
General
| Maximum transmission error | < 0.2 % ((full-scale) at rated voltage) |
|---|---|
| Maximum temperature coefficient | 0.02 %/K |
| Test voltage output/power supply | 500 V AC (50 Hz, 1 min.) |
| Color | black |
| Housing material | Macrolon 2405 |
| Conformance | CE-compliant |
| UL, USA/Canada | UL 863 |
Standards and Regulations
| Connection in acc. with standard | CUL |
|---|---|
| Conformance | CE-compliant |
| UL, USA/Canada | UL 863 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
