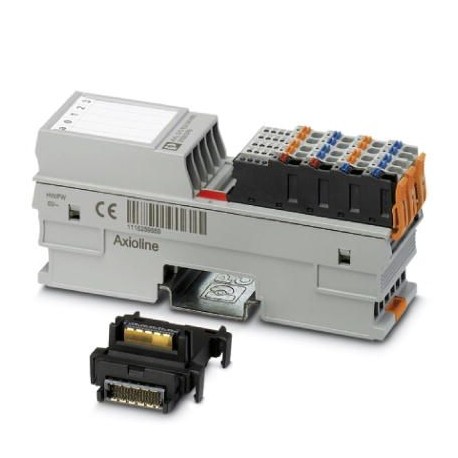

PHOENIX CONTACT AXL F DO8/2 2A 1H AXL F DO8/2 2A 1H 2688381 PHOENIX CONTACT I/O module View larger
Images are for illustrative purposes only. Please refer to data sheet for details

AXL F DO8/2 2A 1H 2688381 PHOENIX CONTACT I/O module

AXL F DO8/2 2A 1H

2688381

PHOENIX CONTACT

1 Pcs.

I/O module AxiolineF, Digital output module, Digital outputs:8, 24 VDC, 2 A, connection technology:2 conductors, transmission speed on the local bus:100 MBit/s, protection index: IP20, including bus socket module and AxiolineF connectors

Automation > Fieldbus, decentr. periphery - digital I/O module
I/O

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2688381
Packing unit1 pc
Catalog pagePage 108 (C-6-2017)
GTIN4046356606479
Weight per Piece (excluding packing)189.000 g
Custom tariff number85389091
Country of originDE (Germany)

Dimensions

Dimensional drawing
Width35 mm
Height126.1 mm
Depth54 mm
Note on dimensionsThe depth is valid when a TH 35-7,5 DIN rail is used (according to EN 60715).

Ambient conditions

Ambient temperature (operation)-25 °C ... 60 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C
Permissible humidity (operation)5 % ... 95 % (non-condensing)
Permissible humidity (storage/transport)5 % ... 95 % (non-condensing)
Air pressure (operation)70 kPa ... 106 kPa (up to 3000 m above sea level)
Air pressure (storage/transport)70 kPa ... 106 kPa (up to 3000 m above sea level)
Degree of protectionIP20

Connection data

DesignationAxioline F connector
Connection methodPush-in connection
Note on the connection methodPlease observe the information provided on conductor cross sections in the “Axioline F: system and installation” user manual.
Conductor cross section solid min.0.5 mm²
Conductor cross section solid max.1.5 mm²
Conductor cross section flexible min.0.5 mm²
Conductor cross section flexible max.1.5 mm²
Conductor cross section AWG min.20
Conductor cross section AWG max.16
Stripping length8 mm

General

Mounting typeDIN rail
Net weight189 g
Note on weight specificationswith connectors and bus base module

Interfaces

DesignationAxioline F local bus
No. of channels2
Connection methodBus base module
Transmission speed100 Mbps

Axioline potentials

DesignationAxioline F local bus supply (UBus)
Supply voltage5 V DC (via bus base module)
Current consumptionmax. 150 mA
Power consumptionmax. 750 mW
DesignationSupply for digital output modules (UO)
Supply voltage24 V DC
Supply voltage range19.2 V DC ... 30 V DC (including all tolerances, including ripple)
Current consumptionmax. 16 A (Provide external protection; if the total current of 8 A is exceeded, connect the supply at the power connector parallel via both terminal points.)
Power consumptionmax. 480 W (of which 625 mW with internal losses)
Type of protectionSurge protection of the supply voltage
Polarity reversal protection of the supply voltage
Protectionmax. 16 A (polarity reversal protection up to 5 A)

Digital outputs

Output nameDigital outputs
Connection methodPush-in connection
Connection technology2-wire
Number of outputs8
Type of protectionShort-circuit protection, overload protection of the outputs
Output voltage24 V
Nominal output voltage24 V DC
Maximum output current per channel2 A
Maximum output current per module16 A (provide external protection)
Nominal load, inductivemax. 48 VA (1.2 H, 12 Ω, at nominal load)
Nominal load, lampmax. 48 W (at nominal voltage)
Nominal load, ohmicmax. 48 W (12 Ω, at nominal load)

Electrical isolation

Test section5 V communications power (logic), 24 V supply (I/O) 500 V AC 50 Hz 1 min.
5 V supply (logic)/functional earth ground 500 V AC 50 Hz 1 min.
24 V supply (I/O) / functional earth ground 500 V AC 50 Hz 1 min.

Standards and Regulations

Mechanical testsVibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 5g
Shock in acc. with EN 60068-2-27/IEC 60068-2-27 30g
Continuous shock according to EN 60068-2-27/IEC 60068-2-27 10g
Protection classIII, IEC 61140, EN 61140, VDE 0140-1

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications
