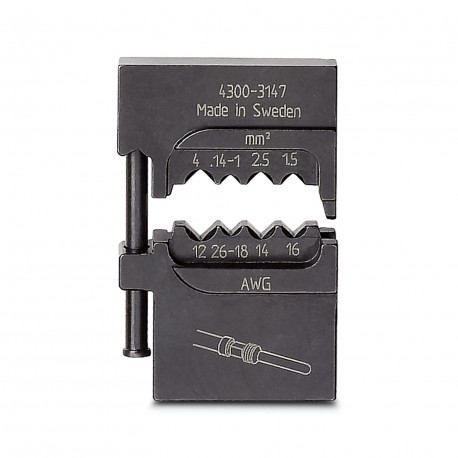

PHOENIX CONTACT 1212075 1212075 PHOENIX CONTACT Replacement die View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1212075 PHOENIX CONTACT Replacement die

1212075

1212075

PHOENIX CONTACT

1 Pcs.

Replacement die Matrix, for Crimpfox-M, for 0.5 ... 4 mm², packed in an alignable storage box Die, for Crimpfox-M, for turned contacts 0.5 ... 4 mm2, packed in a serial storage box

Cables > Insert for crimp tool cable lugs, cable end sleeves, screen connection
TOOL fox

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeDie
CompressionSquare crimp
Crimping position 1
Min. cross section0.5 mm²
Max. cross section1 mm²
AWG min20
AWG max18
Crimping position 2
Max. cross section1.5 mm²
AWG max16
Crimping position 3
Max. cross section2.5 mm²
AWG max14
Crimping position 4
Max. cross section4 mm²
AWG max12
Connection data
Conductor connection
Cross section range, metric0.5 mm² ... 4 mm²
Cross section range AWG20 ... 12
Dimensions
Width75 mm
Height25.5 mm
Length114 mm
Material specifications
Colorblack
