View larger
Images are for illustrative purposes only. Please refer to data sheet for details

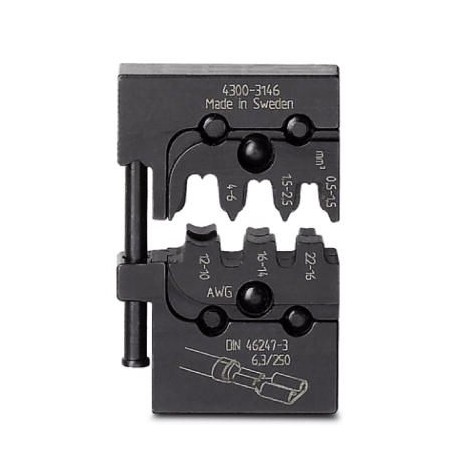

CRIMPFOX-M SC 6/DIE 1212085 PHOENIX CONTACT Replacement die
CRIMPFOX-M SC 6/DIE
1212085
PHOENIX CONTACT
1 Pcs.
Replacement die
Matrix, for Crimpfox-M, for uninsulated flat plug females 0.5 - 6 mm², packed in an alignable storage box
Automation > Accessories/spare parts for pliers and clamps
TOOL fox
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1212085 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 440 (C-3-2017) |
| GTIN | 4046356454551 |
| Weight per Piece (excluding packing) | 79.800 g |
| Custom tariff number | 82032000 |
| Country of origin | SE (Sweden) |
General
| Color | black |
|---|---|
| Compression | B crimp |
| Type of contact | Slip-on sleeve |
| Designation | Crimping position 1 |
| Min. cross section | 0.5 mm² |
| Max. cross section | 6 mm² |
| AWG min | 22 |
| AWG max | 16 |
| Designation | Crimping position 2 |
| Min. cross section | 1.5 mm² |
| Max. cross section | 2.5 mm² |
| AWG min | 16 |
| AWG max | 14 |
| Designation | Crimping position 3 |
| Min. cross section | 4 mm² |
| Max. cross section | 6 mm² |
| AWG min | 12 |
| AWG max | 10 |
| Die station | |
| Weight | 74 g |
| Min. cross section | 0.5 mm² |
| Max. cross section | 6 mm² |
Classifications
eCl@ss 10.0.121019290eCl@ss 4.021040301eCl@ss 4.121040301eCl@ss 5.021040301eCl@ss 5.121040300eCl@ss 6.021043800eCl@ss 7.021043811eCl@ss 8.021043811eCl@ss 9.021019290
| Feature Name | Feature Value |
|---|---|
| Type of accessory/spare part (EF000215) | Other |
| Accessory (EF013236) | Yes |
| Spare part (EF013237) | No |
