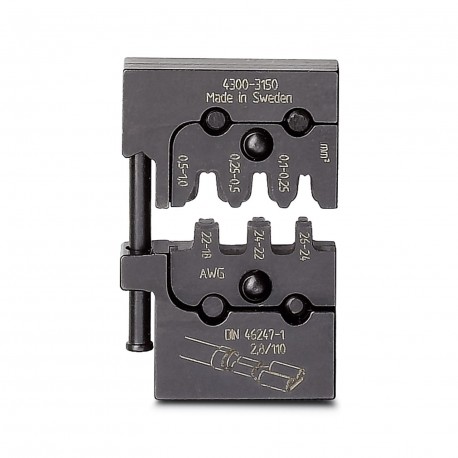

PHOENIX CONTACT CRIMPFOX-M SC 1/DIE CRIMPFOX-M SC 1/DIE 1212083 PHOENIX CONTACT Replacement die View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CRIMPFOX-M SC 1/DIE 1212083 PHOENIX CONTACT Replacement die

CRIMPFOX-M SC 1/DIE

1212083

PHOENIX CONTACT

1 Pcs.

Replacement die Matrix, for Crimpfox-M, for uninsulated flat plug females 0.1 - 1 mm², packed in an alignable storage box Die, for Crimpfox-M, for non-insulated slip-on sleeves 0.1 - 1 mm2, packed in a serial storage box

Automation > Accessories/spare parts for pliers and clamps
TOOL fox

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeDie
CompressionB crimp
Crimping position 1
Min. cross section0.1 mm²
Max. cross section0.25 mm²
AWG min26
AWG max24
Crimping position 2
Min. cross section0.25 mm²
Max. cross section0.5 mm²
AWG min24
AWG max22
Crimping position 3
Min. cross section0.5 mm²
Max. cross section1 mm²
AWG min22
AWG max18
Connection data
Conductor connection
Cross section range, metric0.1 mm² ... 1 mm²
Dimensions
Width75 mm
Height25.5 mm
Length114 mm
Material specifications
Colorblack

ETIM for 1212083 Hand tools (EC011822)
Feature Name Feature Value
Type of accessory/spare part (EF000215) Other
Accessory (EF013236) Yes
Spare part (EF013237) No
