View larger
Images are for illustrative purposes only. Please refer to data sheet for details

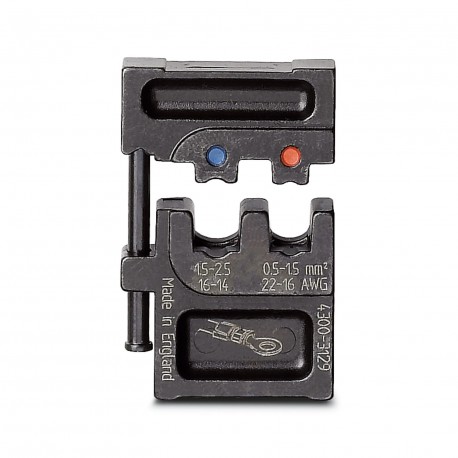

CRIMPFOX-M RCI 2,5/DIE 1212074 PHOENIX CONTACT Replacement die
CRIMPFOX-M RCI 2,5/DIE
1212074
PHOENIX CONTACT
1 Pcs.
Replacement die
Matrix, for Crimpfox-M, for insulated cable lugs 0.5 - 1.5 mm² and 1.5 - 2.5 mm² (red, blue), packed in an alignable storage box
Automation > Accessories/spare parts for pliers and clamps
TOOL fox
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Die |
| Compression | Oval crimp |
| Crimping position 1 | |
| Min. cross section | 0.5 mm² |
| Max. cross section | 1.5 mm² |
| AWG min | 22 |
| AWG max | 16 |
| Crimping position 2 | |
| Min. cross section | 1.5 mm² |
| Max. cross section | 2.5 mm² |
| AWG min | 16 |
| AWG max | 14 |
Connection data
| Conductor connection | |
| Cross section range, metric | 0.5 mm² ... 2.5 mm² |
Dimensions
| Width | 75 mm |
| Height | 25.5 mm |
| Length | 114 mm |
Material specifications
| Color | black |
| Feature Name | Feature Value |
|---|---|
| Type of accessory/spare part (EF000215) | Other |
| Accessory (EF013236) | Yes |
| Spare part (EF013237) | No |
