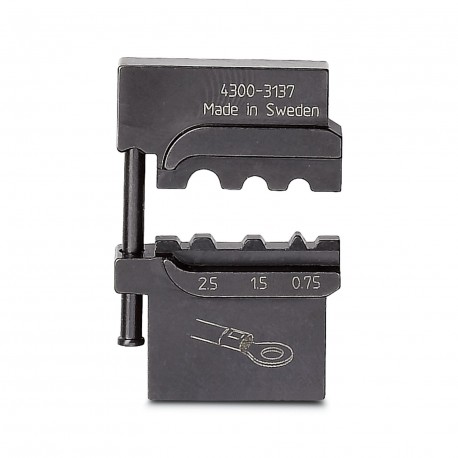

PHOENIX CONTACT CRIMPFOX-M RC 2,5/DIE CRIMPFOX-M RC 2,5/DIE 1212078 PHOENIX CONTACT Replacement die View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CRIMPFOX-M RC 2,5/DIE 1212078 PHOENIX CONTACT Replacement die

CRIMPFOX-M RC 2,5/DIE

1212078

PHOENIX CONTACT

1 Pcs.

Replacement die Matrix, for Crimpfox-M, for uninsulated cable lugs 0.75 - 2.5 mm², packed in an alignable storage box

Automation > Accessories/spare parts for pliers and clamps
TOOL fox

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1212078
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 440 (C-3-2017)
GTIN4046356454476
Weight per Piece (excluding packing)75.100 g
Custom tariff number82032000
Country of originSE (Sweden)

Dimensions

Length (b)114 mm
Width (a)75 mm
Height (c)25.5 mm

General

Colorblack
CompressionIndent crimp
Type of contactNon-insulated cable lugs
DesignationCrimping position 1
Max. cross section0.75 mm²
AWG max20
DesignationCrimping position 2
Max. cross section1.5 mm²
AWG max16
DesignationCrimping position 3
Max. cross section2.5 mm²
AWG max14
Die station
Weight68 g
Min. cross section0.75 mm²
Max. cross section2.5 mm²
