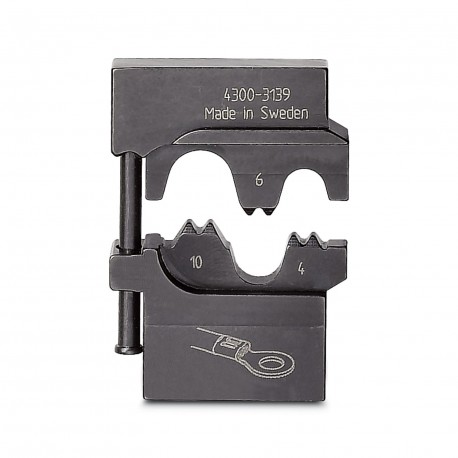

CRIMPFOX-M RC 10/DIE 1212077 PHOENIX CONTACT Replacement die
CRIMPFOX-M RC 10/DIE
1212077
PHOENIX CONTACT
1 Pcs.
Replacement die
Matrix, for Crimpfox-M, for uninsulated cable lugs 4 - 10 mm², packed in an alignable storage box
Die, for Crimpfox-M, for non-insulated cable lugs 4 - 10 mm2, packed in a serial storage box
Automation > Accessories/spare parts for pliers and clamps
TOOL fox
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Die |
| Compression | Indent crimp |
| Crimping position 1 | |
| Max. cross section | 4 mm² |
| AWG max | 12 |
| Crimping position 2 | |
| Max. cross section | 6 mm² |
| AWG max | 10 |
| Crimping position 3 | |
| Max. cross section | 10 mm² |
| AWG max | 8 |
Connection data
| Conductor connection | |
| Cross section range, metric | 4 mm² ... 10 mm² |
Dimensions
| Width | 75 mm |
| Height | 25.5 mm |
| Length | 114 mm |
Material specifications
| Color | black |
| Feature Name | Feature Value |
|---|---|
| Type of accessory/spare part (EF000215) | Other |
| Accessory (EF013236) | Yes |
| Spare part (EF013237) | No |
