View larger
Images are for illustrative purposes only. Please refer to data sheet for details

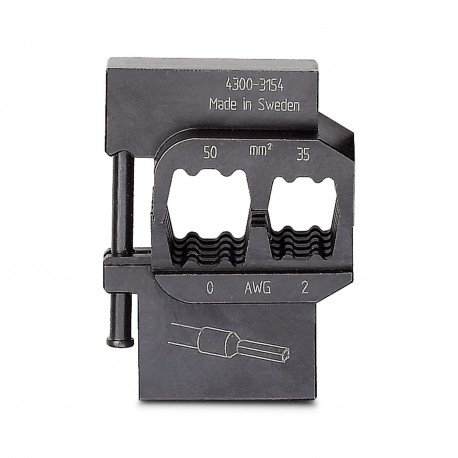

CRIMPFOX-M 50/DIE 1212082 PHOENIX CONTACT Replacement die
CRIMPFOX-M 50/DIE
1212082
PHOENIX CONTACT
1 Pcs.
Replacement die
Matrix, for Crimpfox-M, for 35 - 50 mm² dropouts, packed in an alignable storage box
Die, for Crimpfox-M, for ferrules 35 - 50 mm2, packed in a serial storage box
Automation > Accessories/spare parts for pliers and clamps
TOOL fox
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Die |
| Compression | Trapezoidal crimp |
| Crimping position 1 | |
| Max. cross section | 35 mm² |
| AWG max | 2 |
| Crimping position 2 | |
| Max. cross section | 50 mm² |
| AWG max | 0 |
Connection data
| Conductor connection | |
| Cross section range, metric | 35 mm² ... 50 mm² |
Dimensions
| Width | 75 mm |
| Height | 25.5 mm |
| Length | 114 mm |
Material specifications
| Color | black |
| Feature Name | Feature Value |
|---|---|
| Type of accessory/spare part (EF000215) | Other |
| Accessory (EF013236) | Yes |
| Spare part (EF013237) | No |
