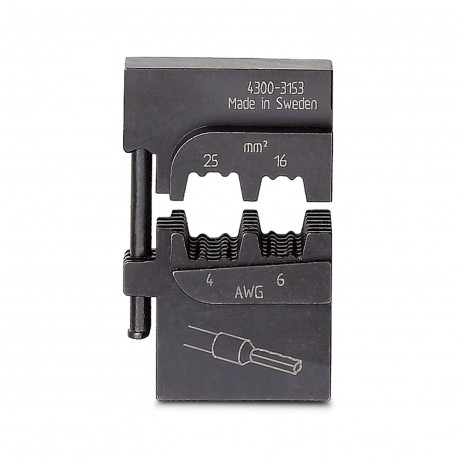

CRIMPFOX-M 25/DIE 1212081 PHOENIX CONTACT Replacement die
CRIMPFOX-M 25/DIE
1212081
PHOENIX CONTACT
1 Pcs.
Replacement die
Matrix, for Crimpfox-M, for 16 - 25 mm² dropouts, packed in an alignable storage box
Die, for Crimpfox-M, for ferrules 16 - 25 mm2, packed in a serial storage box
Automation > Accessories/spare parts for pliers and clamps
TOOL fox
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Die |
| Compression | Trapezoidal crimp |
| Crimping position 1 | |
| Max. cross section | 16 mm² |
| AWG max | 6 |
| Crimping position 2 | |
| Max. cross section | 25 mm² |
| AWG max | 4 |
Connection data
| Conductor connection | |
| Cross section range, metric | 16 mm² ... 25 mm² |
Dimensions
| Width | 75 mm |
| Height | 25.5 mm |
| Length | 114 mm |
Material specifications
| Color | black |
