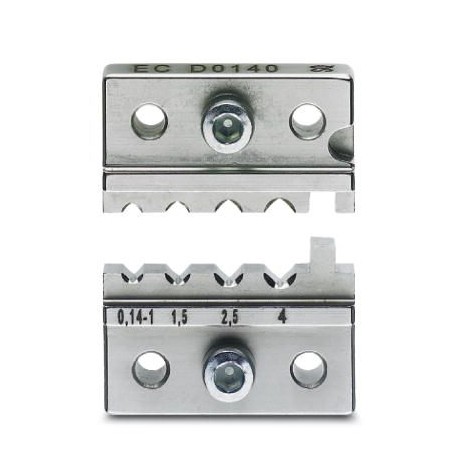

CF 500/DIE TC 4 1212237 PHOENIX CONTACT Replacement die
CF 500/DIE TC 4
1212237
PHOENIX CONTACT
1 Pcs.
Replacement die
Die for CF 500 automatic crimper, for machined contacts with shank diameter 2.5 and 4.0 mm (CK 2.5 ... CK 4.0) 0.14 ... 4 mm²
Cables > Insert for crimp tool cable lugs, cable end sleeves, screen connection
TOOL fox
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1212237 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 511 (C-3-2017) |
| GTIN | 4046356449816 |
| Weight per Piece (excluding packing) | 67.700 g |
| Custom tariff number | 84799070 |
| Country of origin | DE (Germany) |
General
| Compression | Square crimp |
|---|---|
| Min. cross section | 0.14 mm² |
| Max. cross section | 4 mm² |
| Min. cross section | 0.14 mm² |
| Max. cross section | 4 mm² |
