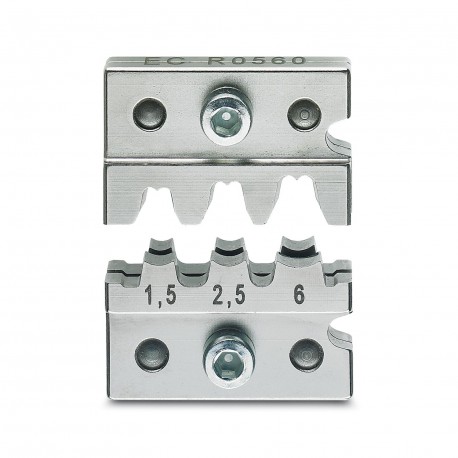

CF 500/DIE SC 6 1212242 PHOENIX CONTACT Replacement die
CF 500/DIE SC 6
1212242
PHOENIX CONTACT
1 Pcs.
Replacement die
Matrix for CF 500 automatic crimper, for flat plug and flat connector females (C-SCF... and C-SCM...) 0,5 ... 6 mm²
Crimper Die CF 500, for Faston Sockets and Plugs (C-SCF... and C-SCM...) 0,5 ... 6 mm2
Tools > Stripping and crimping machine
TOOL fox
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1212242 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 511 (C-3-2017) |
| GTIN | 4046356450003 |
| Weight per Piece (excluding packing) | 73.000 g |
| Custom tariff number | 84799070 |
| Country of origin | DE (Germany) |
General
| Compression | B crimp |
|---|---|
| Min. cross section | 0.5 mm² |
| Max. cross section | 6 mm² |
| Min. cross section | 0.5 mm² |
| Max. cross section | 6 mm² |
Classifications
eCl@ss 10.0.117139201eCl@ss 4.021043074eCl@ss 4.121043074eCl@ss 5.021043290eCl@ss 5.121059000eCl@ss 6.021049000eCl@ss 7.021049090eCl@ss 8.021049090eCl@ss 9.017139201
| Feature Name | Feature Value |
|---|---|
| Adjustable conductor cross section (EF008548) | 0.5 mm² |
| Function (EF000030) | Other |
| Strip length (EF006824) | 7 mm |
